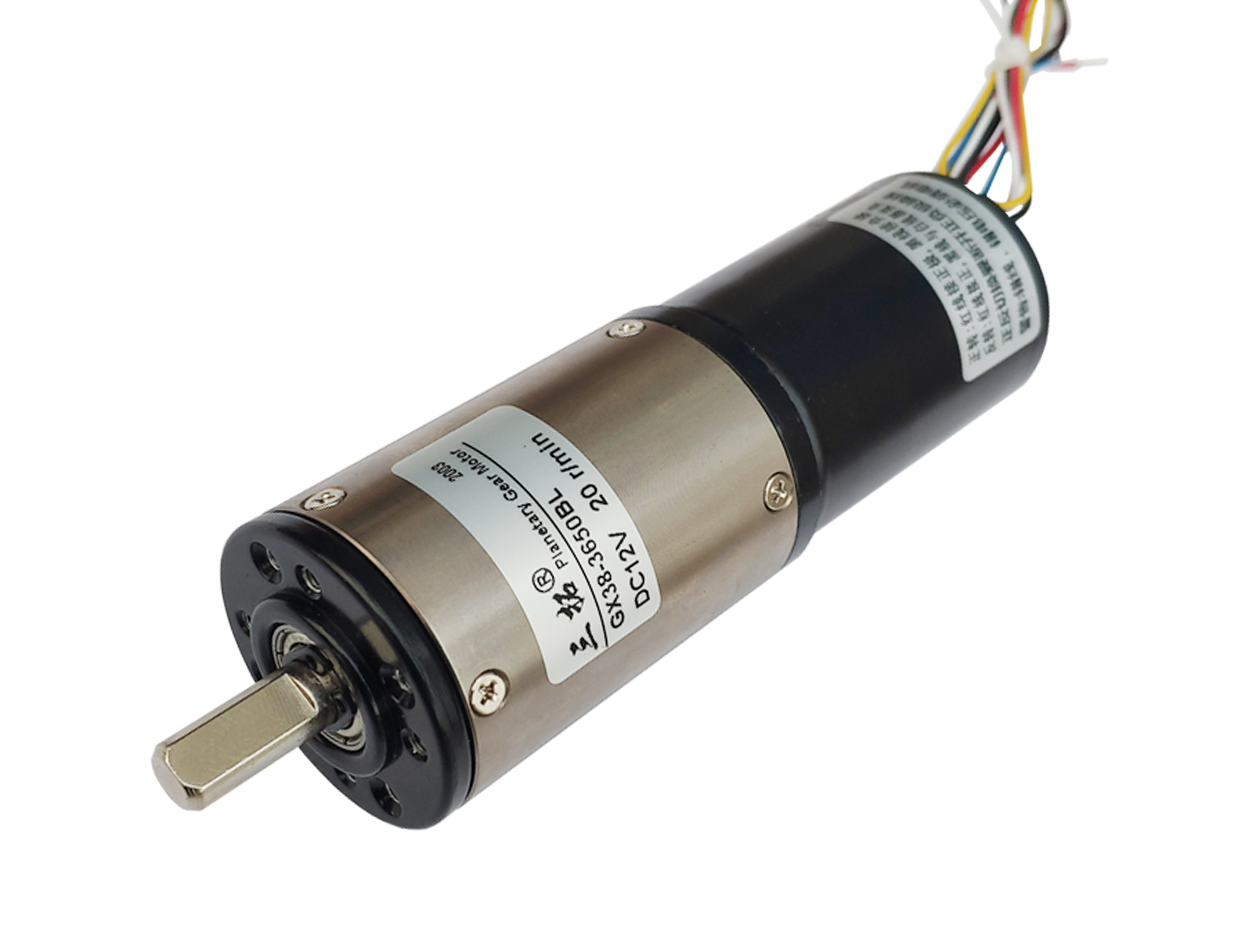

GX38BL(With brushless motor)
Current Location:DC Planetary Gear Reduction >> GX38BL(With brushless motor)
- Model:GX38BL(With brushless motor)
- 1, powerful, with stall capability
- 2, can be reversed, support speed，R395 mountable encoder
- 3, suitable for robots, automatic actuators and other applications
- 4, because of the three-tooth transmission mechanism, the planetary
- gear motor has the same size and greater strength
Detailed introduction

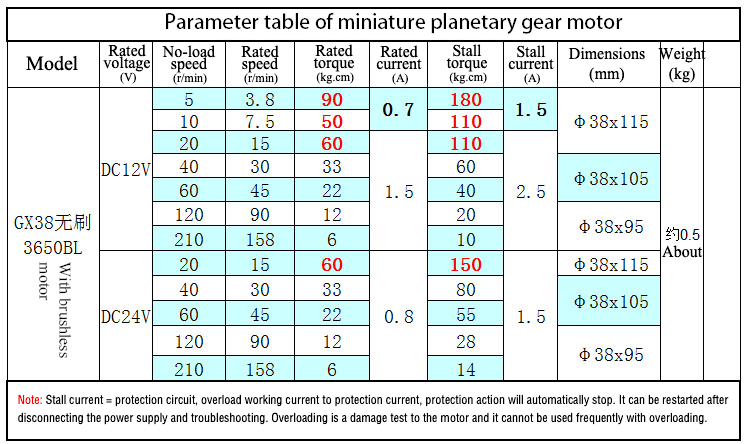

Technical Parameters
Brushless motor description:
The high-speed shaft of the brushless motor rotates 1 circle and outputs 1 pulse signal. When speed measurement or distance measurement is required, it is realized with the motor reduction ratio and related control parts——The 1 pulse signal represents the rotation angle of the output shaft of the reducer = 360°÷1÷reduction ratio. The buyer can use this signal to add the control mechanism to detect the actual speed of the motor and the rotation of the output shaft. Angle.
The high-speed shaft of the brushless motor rotates 1 circle and outputs 1 pulse signal. When speed measurement or distance measurement is required, it is realized with the motor reduction ratio and related control parts——The 1 pulse signal represents the rotation angle of the output shaft of the reducer = 360°÷1÷reduction ratio. The buyer can use this signal to add the control mechanism to detect the actual speed of the motor and the rotation of the output shaft. Angle.

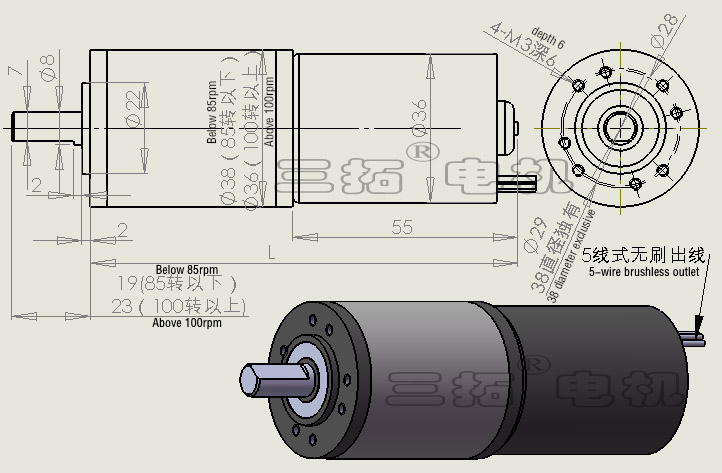

Dimensions(unit: mm)
