GW114165
Current Location:DC Worm Gear Reduction >> GW114165
- Model:GW114165
- 1, multiple parameters are optional
- 2, can be reversed, support speed, strong power
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4. applicable to window openers, door openers, marine
- drawstrings, miniature winches, etc
Detailed introduction
Technical Parameters
| Voltage | Current | Reduction ratio | No-load speed | Load speed | Torque | Weight |
| DC12V | 30A | 1:100 | 17RPM | 13RPM | 600kg.cm | 8.5kg |
| DC12V | 30A | 1:80 | 21RPM | 16RPM | 700kg.cm | 8.5kg |
| DC12V | 30A | 1:60 | 28RPM | 21RPM | 600kg.cm | 8.5kg |
| DC12V | 30A | 1:50 | 34RPM | 26RPM | 500kg.cm | 8.5kg |
| DC12V | 30A | 1:40 | 42RPM | 31RPM | 400kg.cm | 8.5kg |
| DC12V | 30A | 1:30 | 56RPM | 42RPM | 360kg.cm | 8.5kg |
| DC12V | 30A | 1:20 | 84RPM | 63RPM | 260kg.cm | 8.5kg |
| DC12V | 30A | 1:15 | 112RPM | 85RPM | 200kg.cm | 8.5kg |
| DC12V | 30A | 1:10 | 170RPM | 126RPM | 140kg.cm | 8.5kg |
| DC12V | 30A | 1:7.5 | 224RPM | 170RPM | 100kg.cm | 8.5kg |
| DC12V | 30A | 1:5 | 340RPM | 250RPM | 70kg.cm | 8.5kg |
| Voltage | Current | Reduction ratio | No-load speed | Load speed | Torque | Weight |
| DC24V | 15A | 1:100 | 17RPM | 13RPM | 600kg.cm | 8.5kg |
| DC24V | 15A | 1:80 | 21RPM | 16RPM | 700kg.cm | 8.5kg |
| DC24V | 15A | 1:60 | 28RPM | 21RPM | 600kg.cm | 8.5kg |
| DC24V | 15A | 1:50 | 34RPM | 26RPM | 500kg.cm | 8.5kg |
| DC24V | 15A | 1:40 | 42RPM | 31RPM | 400kg.cm | 8.5kg |
| DC24V | 15A | 1:30 | 56RPM | 42RPM | 360kg.cm | 8.5kg |
| DC24V | 15A | 1:20 | 84RPM | 63RPM | 260kg.cm | 8.5kg |
| DC24V | 15A | 1:15 | 112RPM | 85RPM | 200kg.cm | 8.5kg |
| DC24V | 15A | 1:10 | 170RPM | 126RPM | 140kg.cm | 8.5kg |
| DC24V | 15A | 1:7.5 | 224RPM | 170RPM | 100kg.cm | 8.5kg |
| DC24V | 15A | 1:5 | 340RPM | 250RPM | 70kg.cm | 8.5kg |

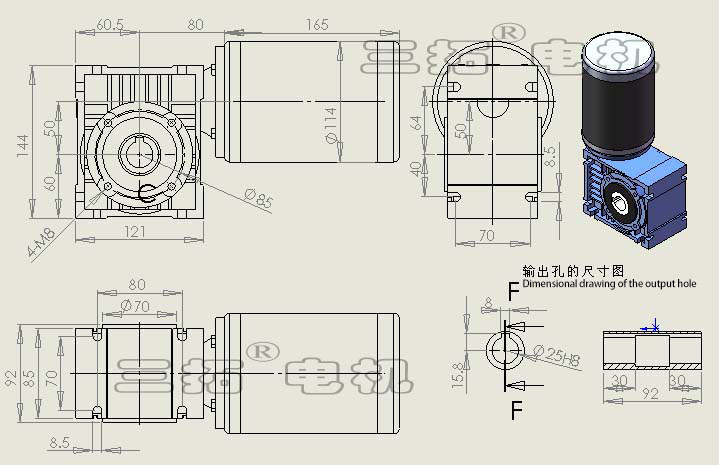

Dimensions(unit: mm)
