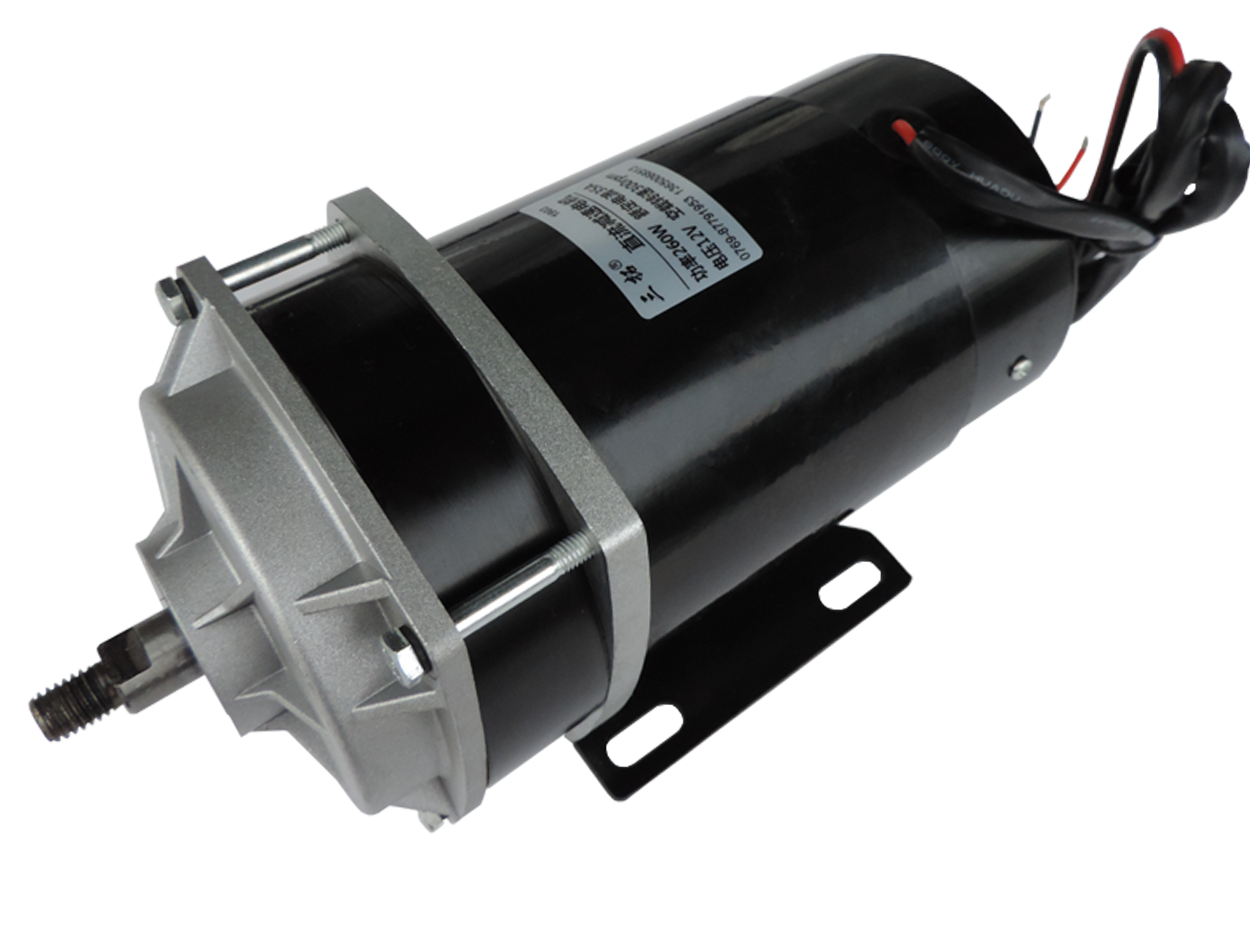

- Model:650W-XXJS
- 1, support positive and negative, adjustable speed, durable
- 2, multi-speed optional, large torque, stable and reliable
- quality
- 3, widely used in barbecue motors, assembly lines, etc
- 4, because of the three-tooth transmission mechanism, the planetary
- gear motor has the same size and greater strength
Detailed introduction

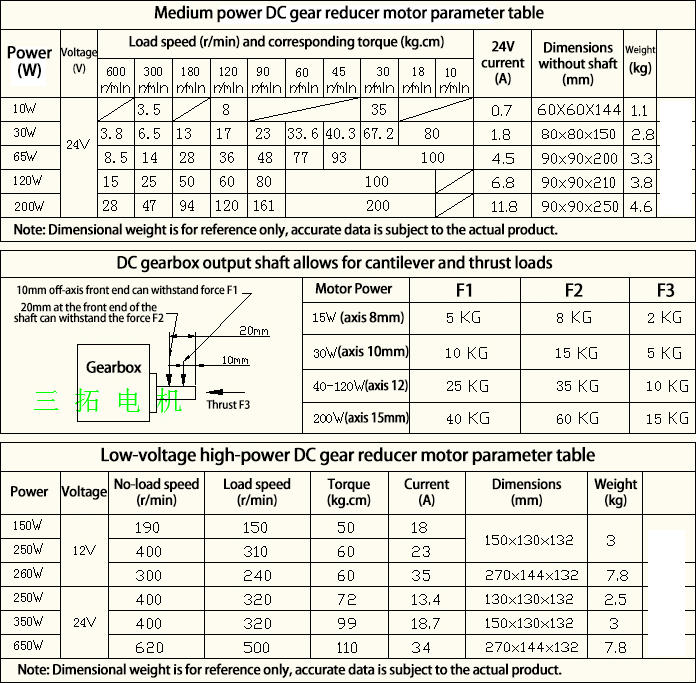

Technical Parameters
| Power | Voltage | Current | No-load speed | Load speed | Torque | Weight |
| 650W | DC24V | 34A | 620RPM | 500RPM | 110kg.cm | 7.8kg |
| 260W | DC12V | 35A | 300RPM | 240RPM | 60kg.cm | 7.8kg |
Dimensions(unit: mm)
