YB-GW370
Current Location:Swing Back and Forth >> Reciprocating Rocking

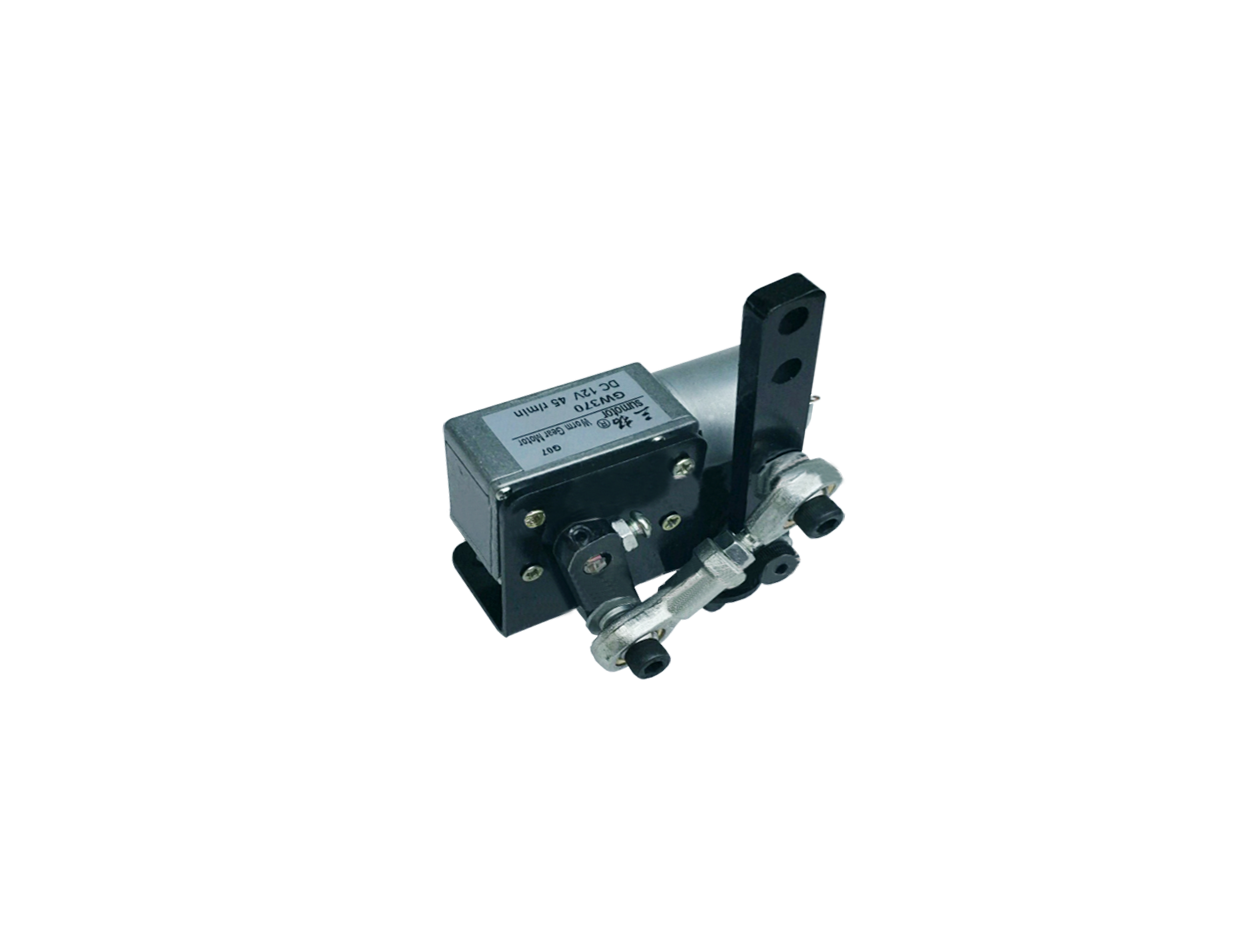

    Model:YB-GW370
  • 1, Small and exquisite
  • 2, swing angle, reciprocating frequency optional, adjustable speed
  • 3, different from the intermittent operation of the ordinary
  • linear push rod motor, our automatic continuous reciprocating
  • operation after power-on
Detailed introduction
Schematic diagram of the operation:

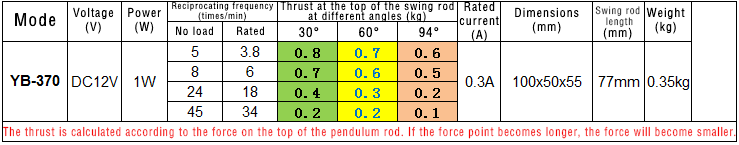

  • Technical Parameters
  • Dimensions(unit: mm)
    The following reciprocating swing motors are available for customization:
