AC25W
Current Location:Swing Back and Forth >> AC25W
Type:Swing Back and Forth
    Model:AC25W
  • 1, swing angle, reciprocating frequency optional, adjustable
  • speed
  • 2, different from the intermittent operation of the ordinary
  • linear push rod motor, our automatic continuous reciprocating
  • operation after power-on
Detailed introduction

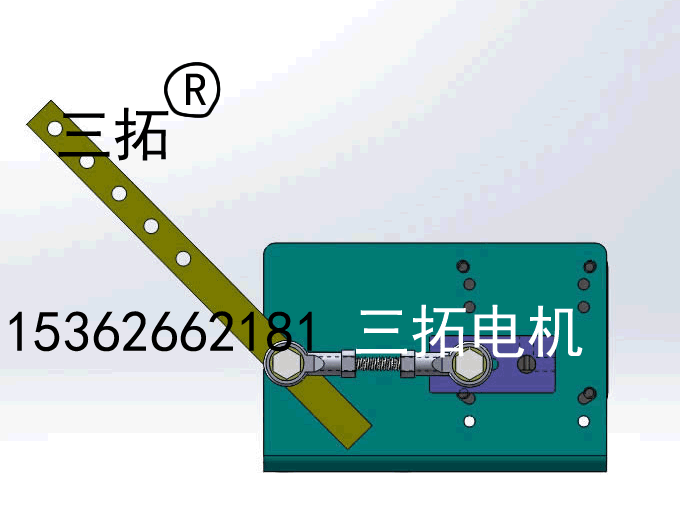

Schematic diagram of the operation:

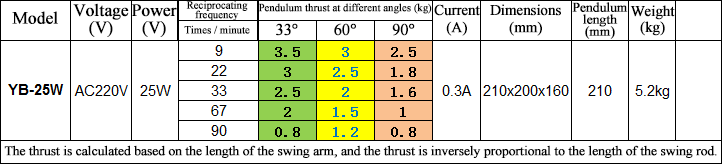

    • Technical Parameters

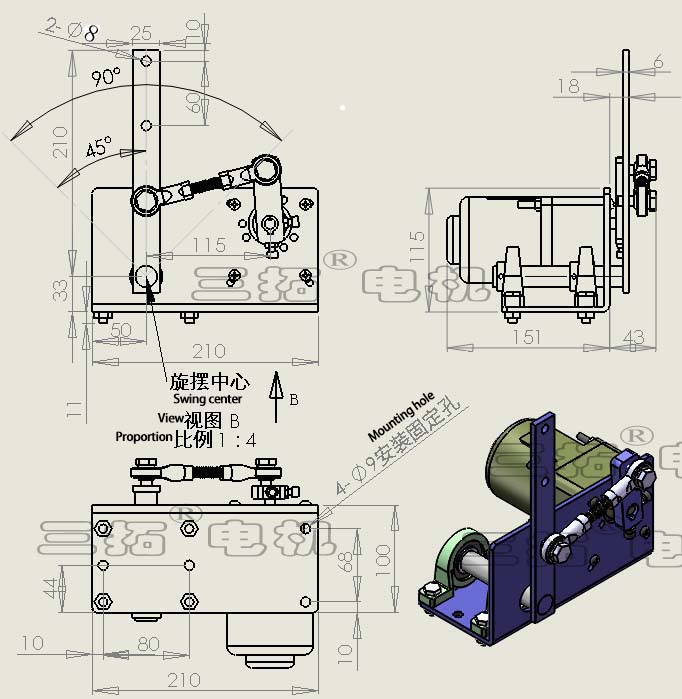

    • Dimensions(unit: mm)

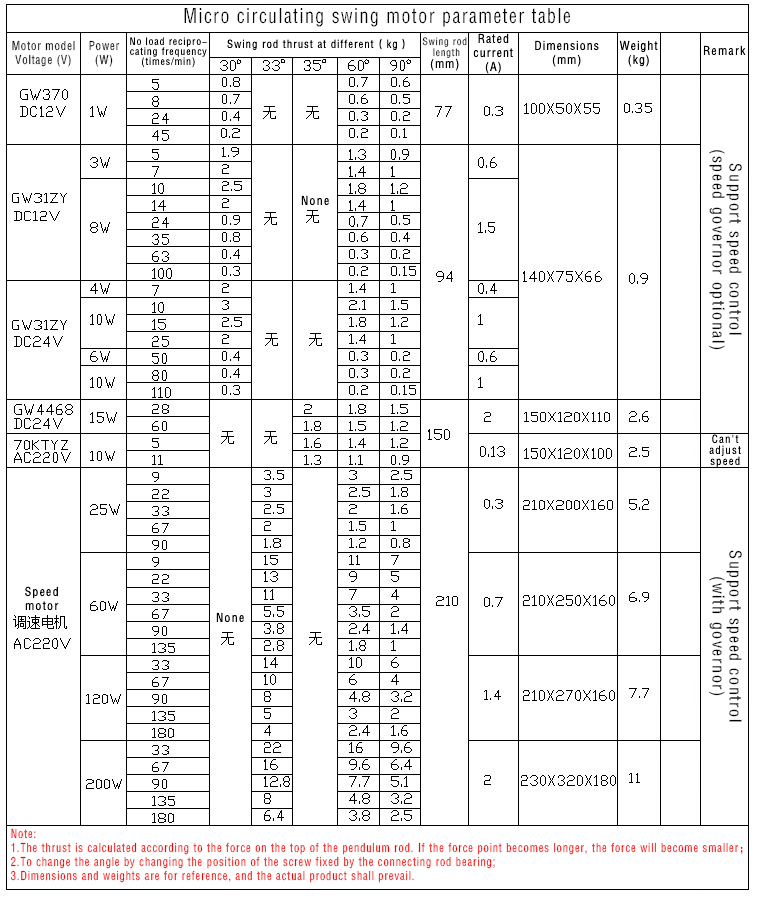

    The following reciprocating swing motors are available for customization:
