Type:Swing Back and Forth


- Model:AC200W
- 1, swing angle, reciprocating frequency optional, adjustable
- speed
- 2, different from the intermittent operation of the ordinary
- linear push rod motor, our automatic continuous reciprocating
- operation after power-on
Detailed introduction
Schematic diagram of the operation:

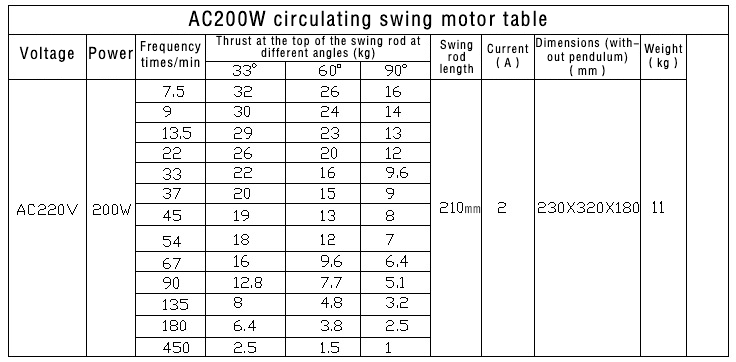

Technical Parameters

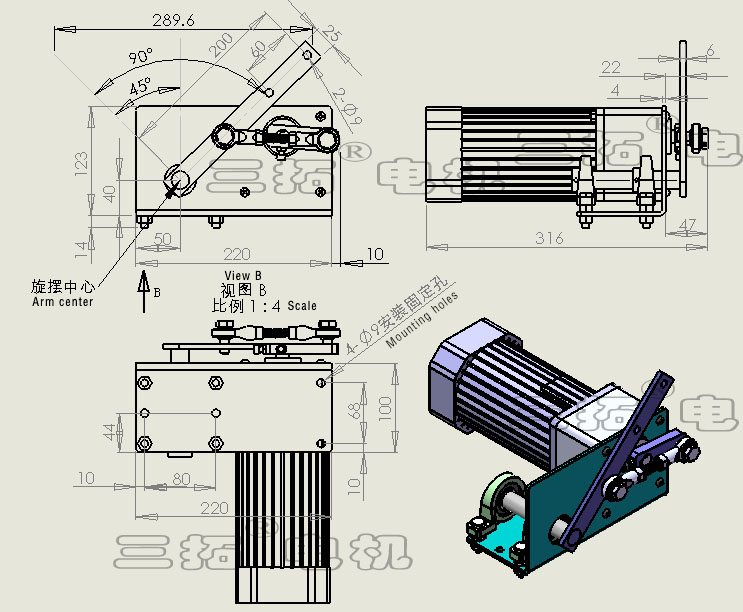

Dimensions(unit: mm)
The following reciprocating swing motors are available for customization:
