Y350
Current Location:DC High Speed >> Y350
Type:DC High Speed

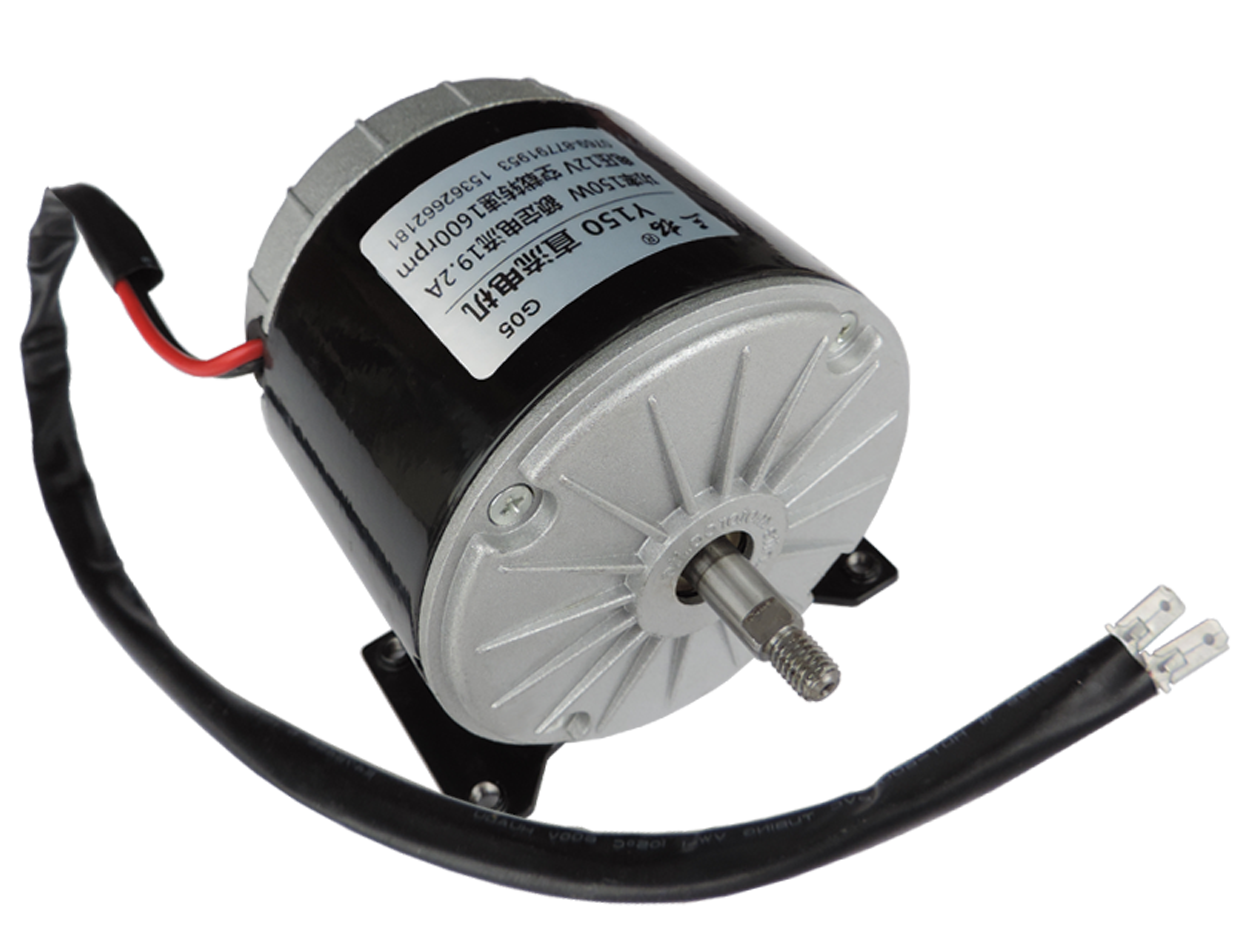

- Model:Y350
- 1, This class has 150, 250, 350W
- 2, Long carbon brush tubular motor, long service life
- 3, low noise, large torque, stable and reliable performance
- 4, widely used in electric bicycles, electric power equipment
- and other applications
Detailed introduction
Technical Parameters
| Rated power | Rated voltage | No-load speed | Rated speed | Rated torque | Rated current | Weight |
| 150W | DC12V | 1600RPM | 1250RPM | 7kg.cm | 19A | 2.7kg |
| 250W | DC24V | 3350RPM | 2750RPM | 9kg.cm | 13.5A | 2kg |
| 350W | DC24V | 3350RPM | 2750RPM | 12kg.cm | 19.2A | 2.7kg |
Dimensions(unit: mm)

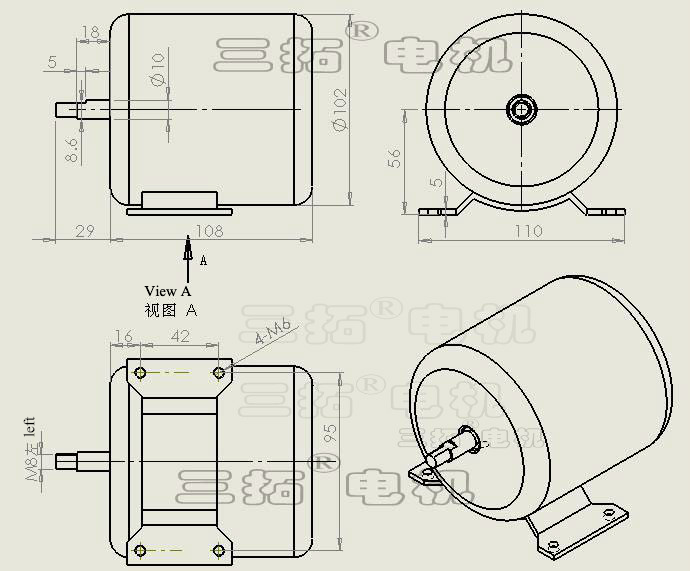

150W、350W size

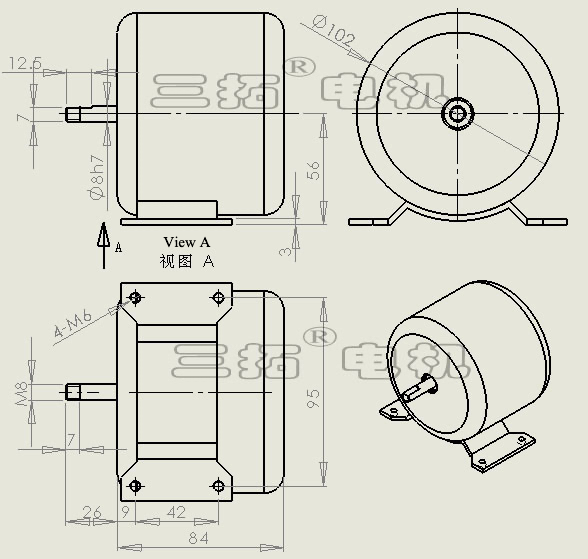

250W size
he parameters of this series of DC high-speed motors are shown in the table below
150W、350W size
250W size
