Y100
Current Location:DC High Speed >> Y100
Type:DC High Speed

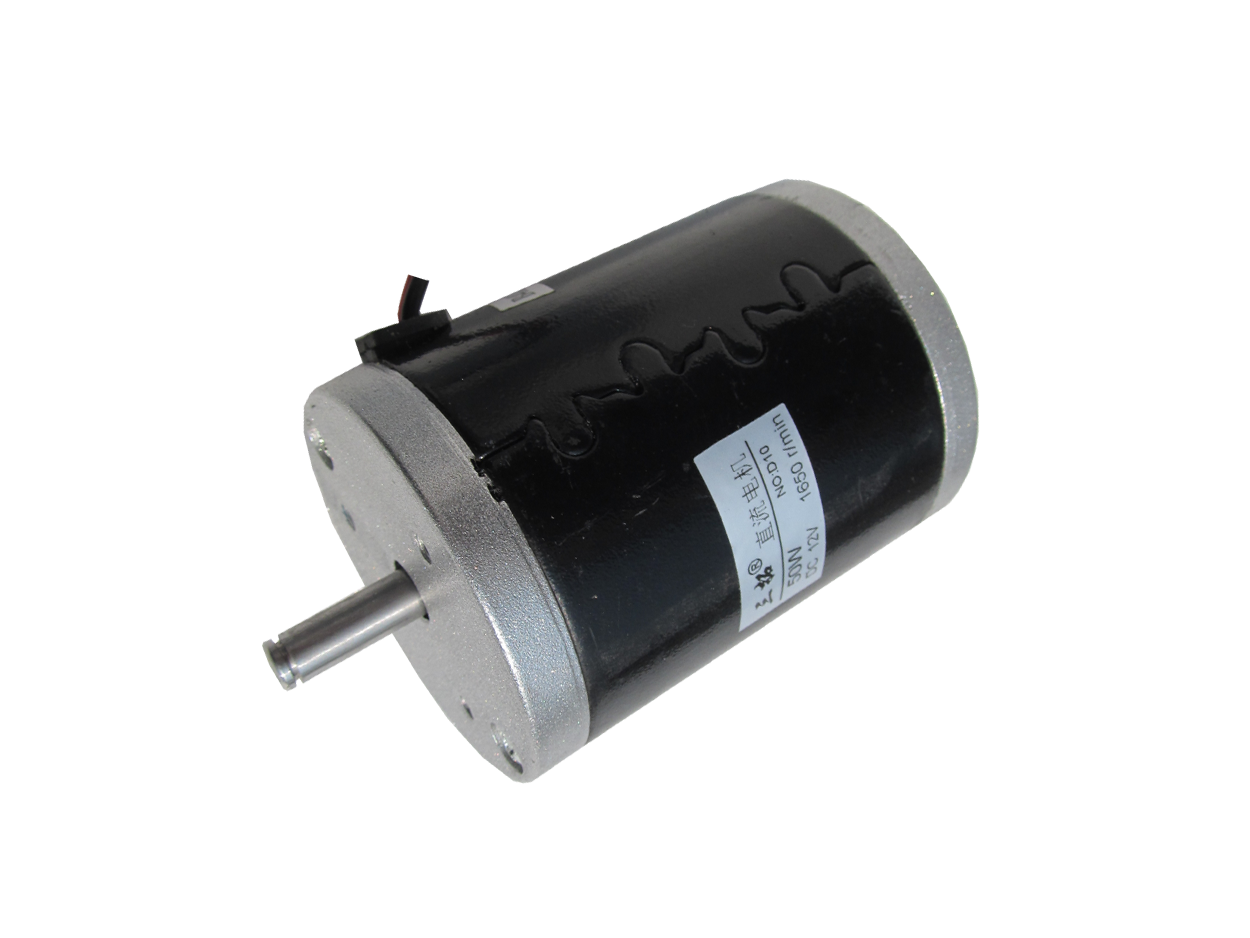

- Model:Y100
- 1, This class has 50, 80, 100, 120W
- 2, support speed regulation, can be reversed
- 3, low noise, large torque, stable and reliable performance
- 4, widely used in scooters, fertilizer spreaders and other
- applications
Detailed introduction
Technical Parameters
| Rated power | Rated voltage | No-load speed | Rated speed | Rated torque | Rated current | Weight |
| 50W | DC12V | 1650RPM | 1300RPM | 1.8kg.cm | 6A | 1.1kg |
| 80W | DC12V | 3400RPM | 2600RPM | 2.5kg.cm | 9A | 1.1kg |
| 100W | DC24V | 3400RPM | 2600RPM | 3.5kg.cm | 5.8A | 1.1kg |
| 120W | DC24V | 3400RPM | 2600RPM | 4.2kg.cm | 7A | 1.4kg |
Dimensions(unit: mm)

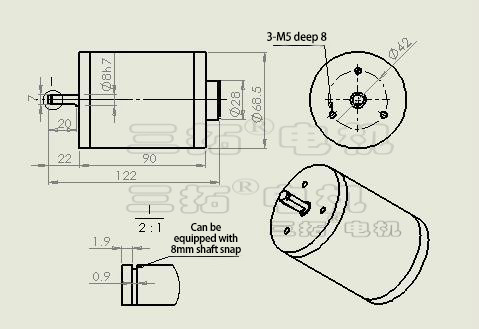

50W、80W、100W size

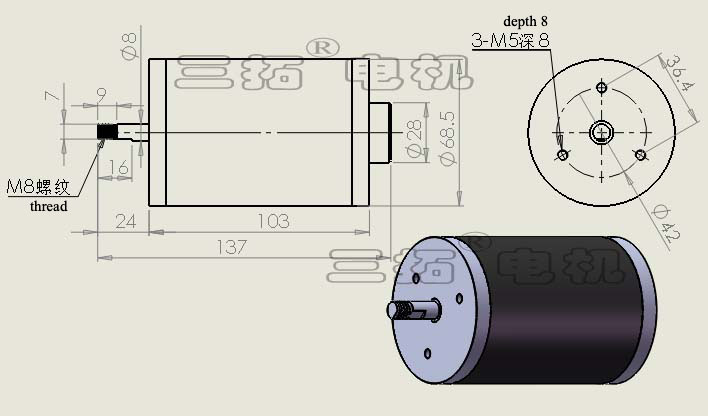

120W size
The motor is applied to the scooter example:
The parameters of this series of DC high-speed motors are shown in the table below
50W、80W、100W size
