Electromagnet reciprocating
Current Location:Linear Reciprocating >> Electromagnet reciprocating
Type:Linear Reciprocating
- Model:Electromagnet reciprocating
- 1, Automatic circulation expansion (with switch can also be jogged)
- 2, Compact structure, adjustable frequency
- 3, Often used in aging experiments, it is a good helper for new
- product trial production
Detailed introduction

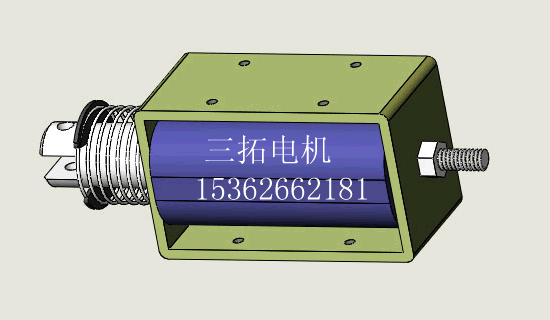

Schematic diagram of running action:
Technical Parameters

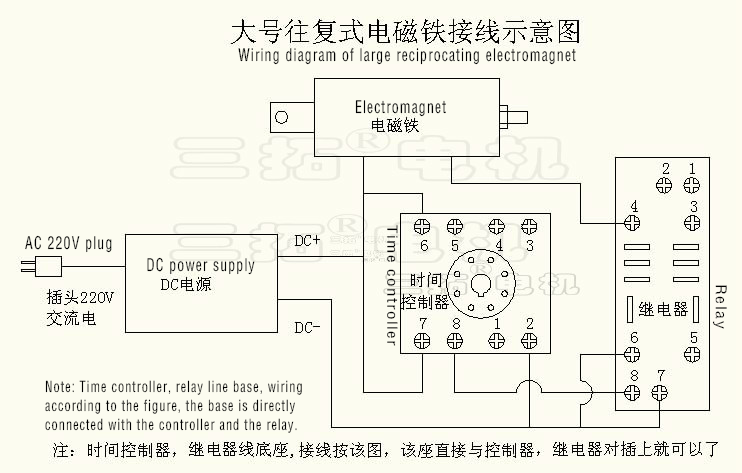

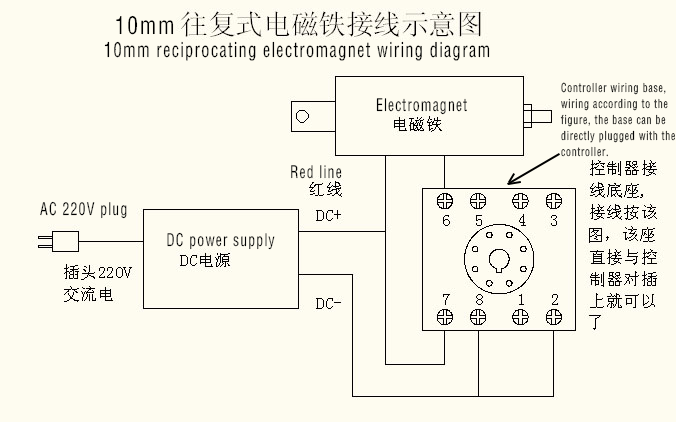

Electromagnet wiring diagram：
| Type | Stroke | Voltage | Frequency（adjustable) | Current | Max-thrust | Electromagnet weight |
| WF10-2408 | 10mm | DC24V | 60 Times/min | 0.8A | 8N | 0.4kg |
| WF20-2460 | 20mm | DC24V | 60 Times/min | 4.2A | 60N | 0.85kg |

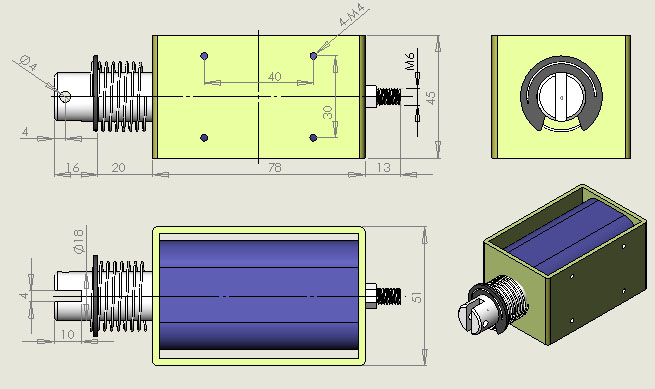

Dimensions (unit: mm)

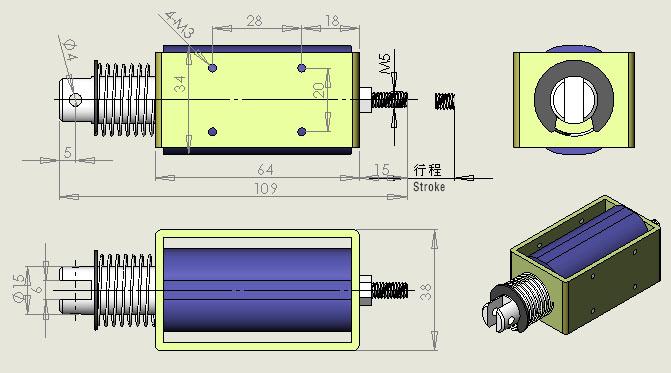

Stroke 10mm electromagnet size：
Stroke 10mm electromagnet size：
