WF-AC120W
Current Location:Linear Reciprocating >> WF-AC120W

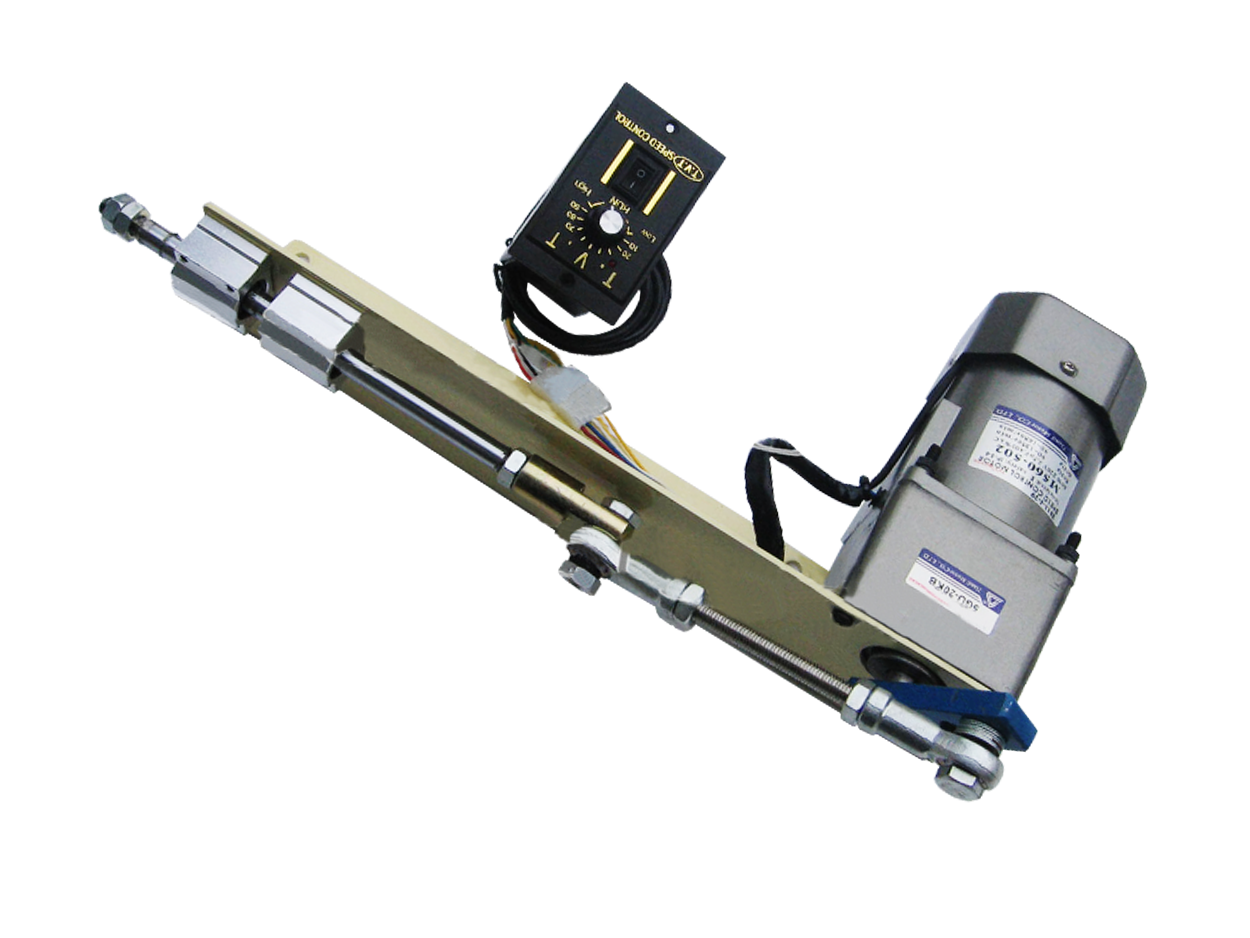

    Model:WF-AC120W
  • 1, Low noise, compact structure, speed adjustable
  • 2, different from the intermittent operation of the ordinary
  • linear push rod motor, our automatic continuous reciprocating
  • operation after power-on
Detailed introduction
Schematic diagram of running action:

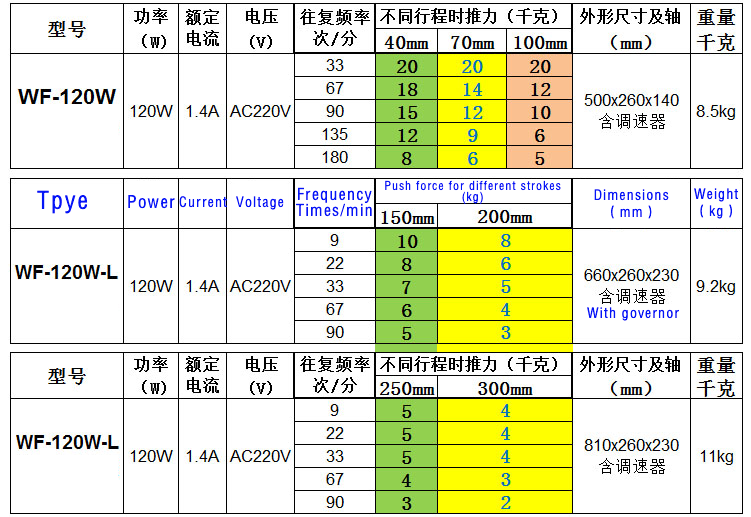

Technical Parameters
Dimensions(unit: mm)

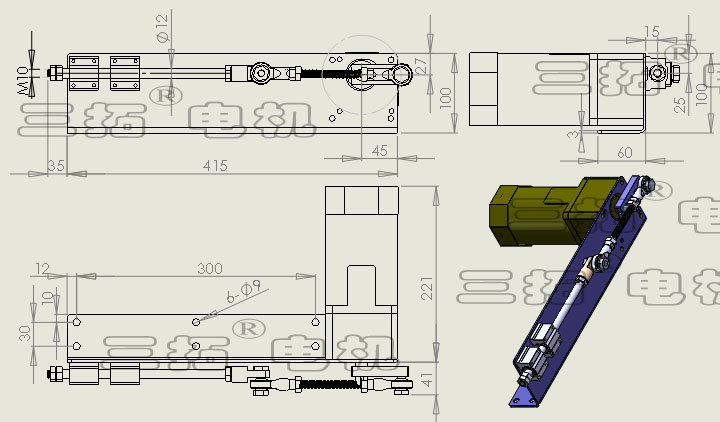

Stroke 100mm size:

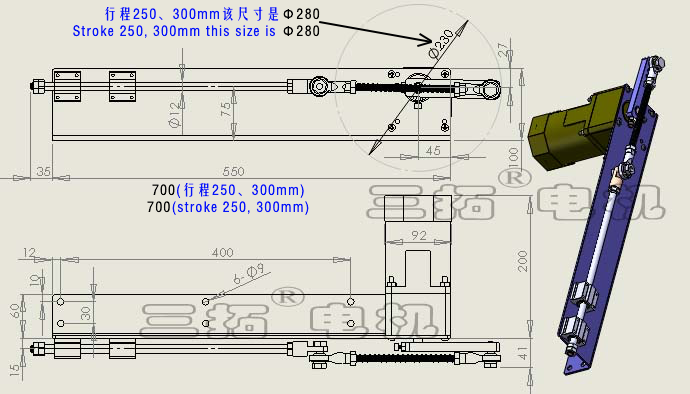

  • Stroke 150、200mm and 250、300mm size:
  • The following linear reciprocating motors can be customized:
