R80170
Current Location:DC High Speed >> R80170
Type:DC High Speed
- Model:R80170
- 1, This class has 90, 100, 180W
- 2, Long carbon brush tubular motor, long service life
- 3, low noise, large torque, stable and reliable performance
- 4, Durable and easy to replace carbon brushes, rolling bearing
- mechanism with low noise
Detailed introduction
Technical Parameters
| Rated power | Rated voltage | No-load speed | Rated speed | Rated torque | Rated current | Weight |
| 90W | DC12V | 1800RPM | 1370RPM | 7kg.cm | 15A | 2.4kg |
| 100W | DC24V | 1800RPM | 1370RPM | 8kg.cm | 8A | 2.4kg |
| 180W | DC24V | 3500RPM | 2800RPM | 8kg.cm | 13A | 2.4kg |

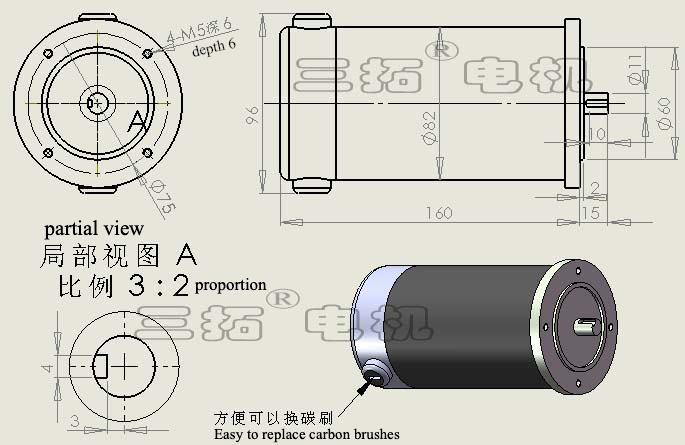

Dimensions(unit: mm)
The parameters of this series of DC high-speed motors are shown in the table below
