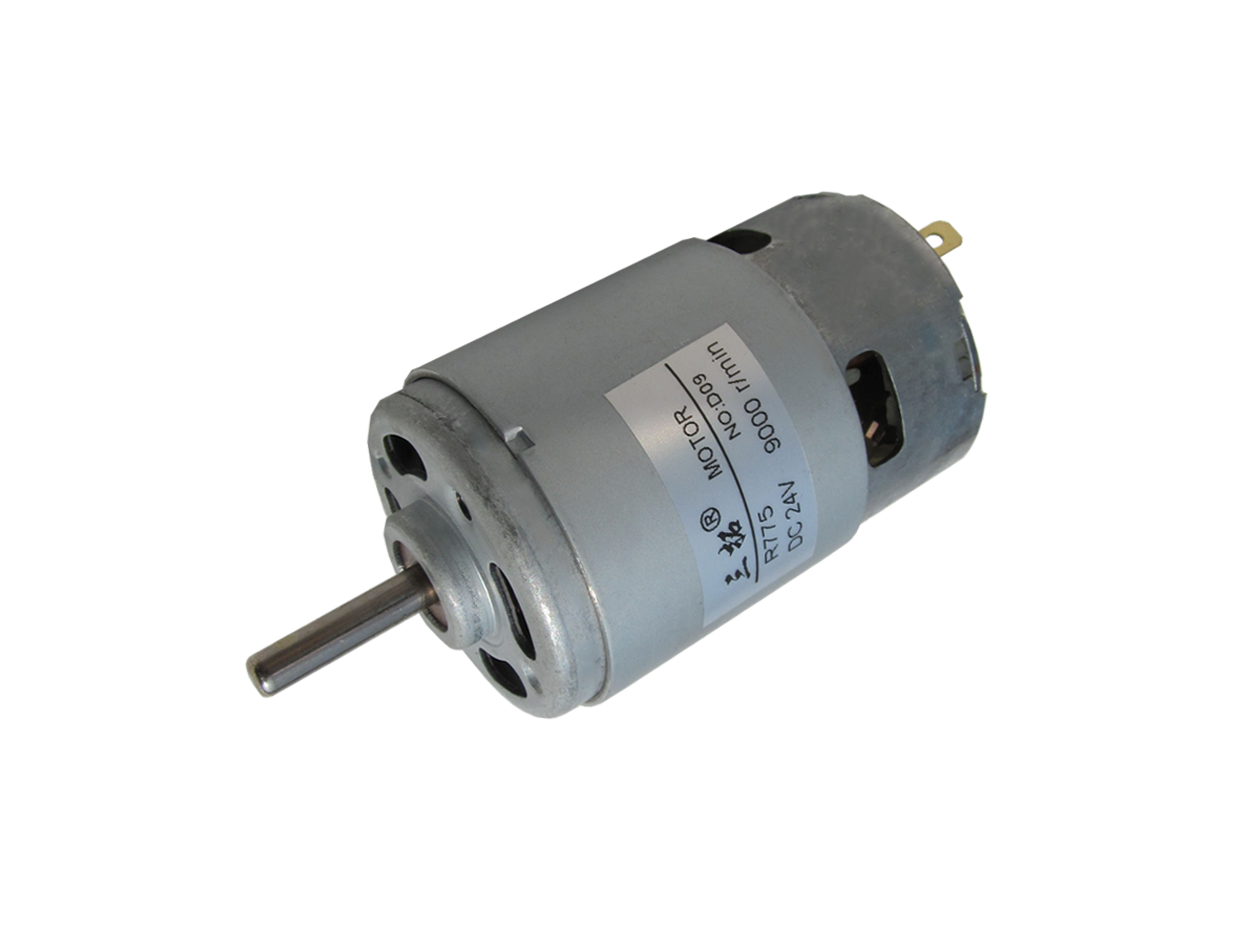

R775
Current Location:DC High Speed >> R775
Type:DC High Speed
- Model:R775
- 1, Long carbon brush tubular motor, long service life
- 2, low noise, large torque, stable and reliable performance
- 3, support speed regulation, can be reversed, with gearbox use
Detailed introduction
Technical Parameters
| Rated voltage | No-load speed | Rated speed | Rated current | Rated torque |
| DC12V | 4600RPM | 3500RPM | 3A | 0.4kg.cm |
| DC12V | 12000RPM | 9100RPM | 5A | 0.65kg.cm |
| DC24V | 5000RPM | 3800RPM | 2A | 0.5kg.cm |
| DC24V | 9000RPM | 6840RPM | 3.5A | 0.6kg.cm |

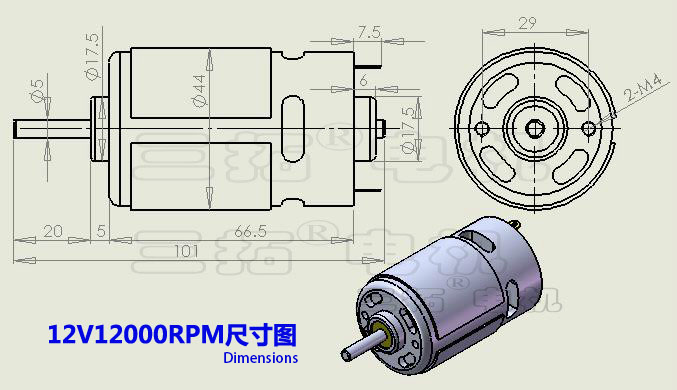

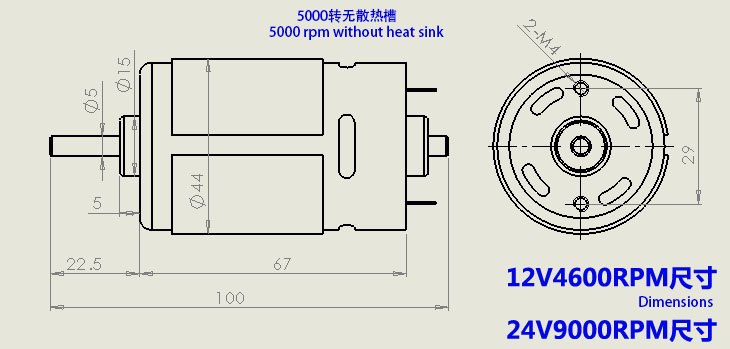

Dimensions(unit: mm)
The parameters of this series of DC high-speed motors are shown in the table below
