R545
Current Location:DC High Speed >> R545
Type:DC High Speed
- Model:R545
- 1, ultra high speed, support speed, can be reversed
- 2, low noise, large torque, stable and reliable performance
- 3, widely used in baby carriages, toys and other applications
Detailed introduction
Technical Parameters
| Rated voltage | No-load speed | Rated speed | Rated current | Rated torque |
| DC6V | 3000RPM | 2200RPM | 1.5A | 0.2kg.cm |
| DC12V | 3000RPM | 2200RPM | 1A | 0.2kg.cm |
| DC12V | 6000RPM | 4500RPM | 2A | 0.3kg.cm |
| DC24V | 3000RPM | 2200RPM | 0.6A | 0.2kg.cm |
| DC24V | 6000RPM | 4500RPM | 1A | 0.3kg.cm |
| DC24V | 12000RPM | 9000RPM | 1.8A | 0.4kg.cm |

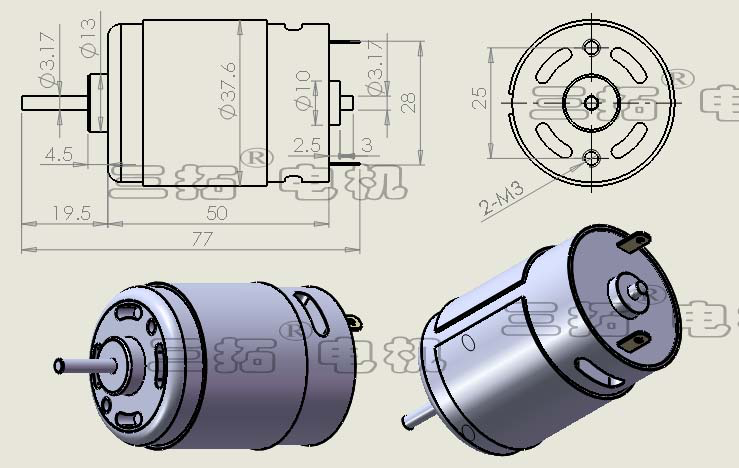

Dimensions(unit: mm)
Tail shaft
The parameters of this series of DC high-speed motors are shown in the table below
