R31ZY
Current Location:DC High Speed >> R31ZY
Type:DC High Speed
- Model:R31ZY
- 1, Long carbon brush tubular motor, long service life
- 2, low noise, large torque, stable and reliable performance
- 3, support speed regulation, can be reversed, with gearbox use
Detailed introduction
Technical Parameters
| Rated voltage | No-load speed | Rated speed | Rated current | Rated torque |
| DC12V | 4000RPM | 3040RPM | 0.7A | 0.1kg.cm |
| DC12V | 6500RPM | 4940RPM | 1.5A | 0.13kg.cm |
| DC12V | 8000RPM | 6100RPM | 1.7A | 0.18kg.cm |
| DC24V | 4000RPM | 3040RPM | 0.5A | 0.1kg.cm |
| DC24V | 5500RPM | 4180RPM | 0.7A | 0.12kg.cm |
| DC24V | 6500RPM | 4940RPM | 0.9A | 0.15kg.cm |
| DC24V | 8000RPM | 6100RPM | 1A | 0.2kg.cm |

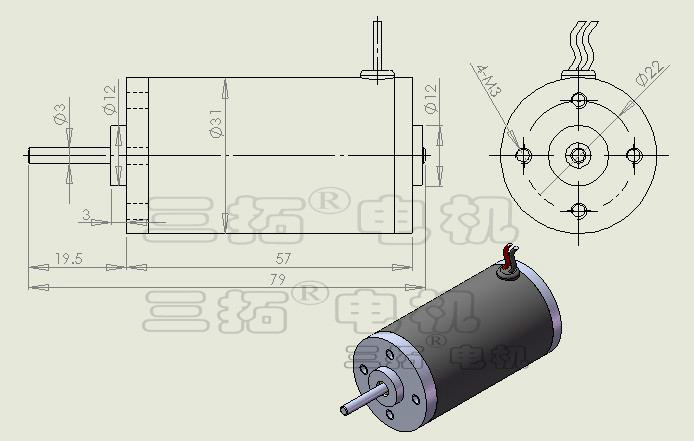

Dimensions(unit: mm)
The parameters of this series of DC high-speed motors are shown in the table below
