Type:Worm Gear Reduction
![](images/cp/zlwljsdj/GW80170-1200.png)
![](images/cp/zlwljsdj/GW80170-1200.png)

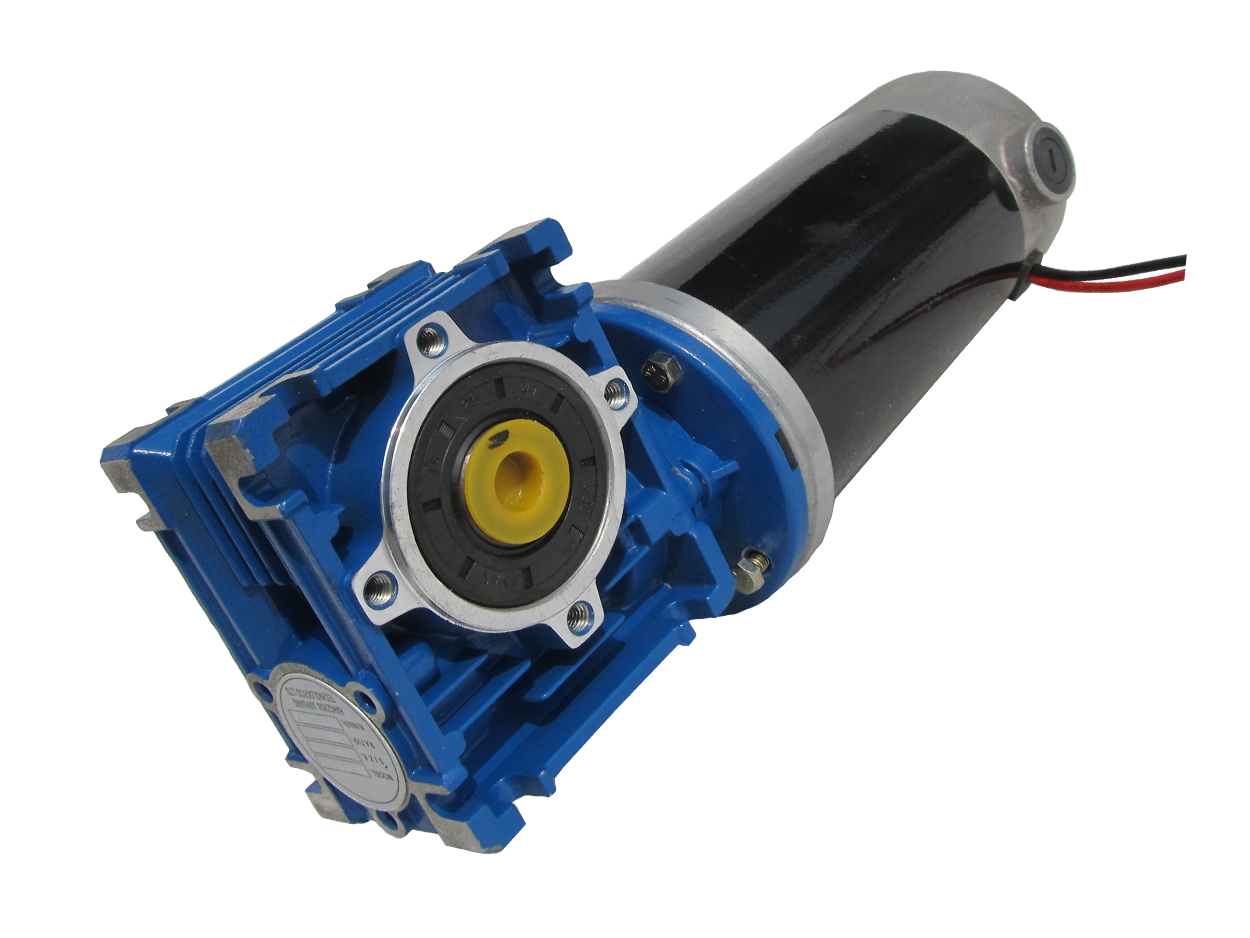

- Model:GW80170
- 1, can be equipped with encoder, carbon brush is convenient
- 2, can be reversed, support speed, strong power
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4. Applicable to window openers, door openers, marine
- drawstrings, miniature winches, etc
Detailed introduction

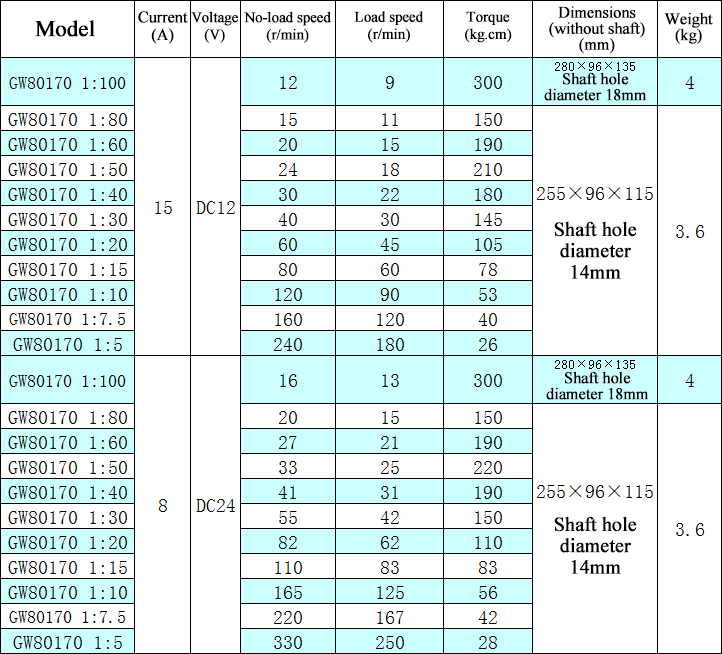

Technical Parameters
![](images/cp/jscs/GW80170-EN.png)

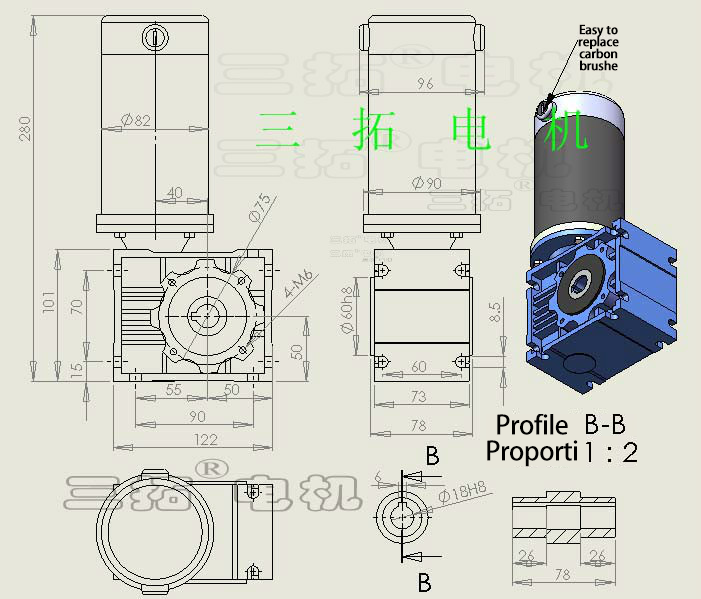

Dimensions(unit: mm)
![](images/cp/wxcc/GW80170-EN.png)
