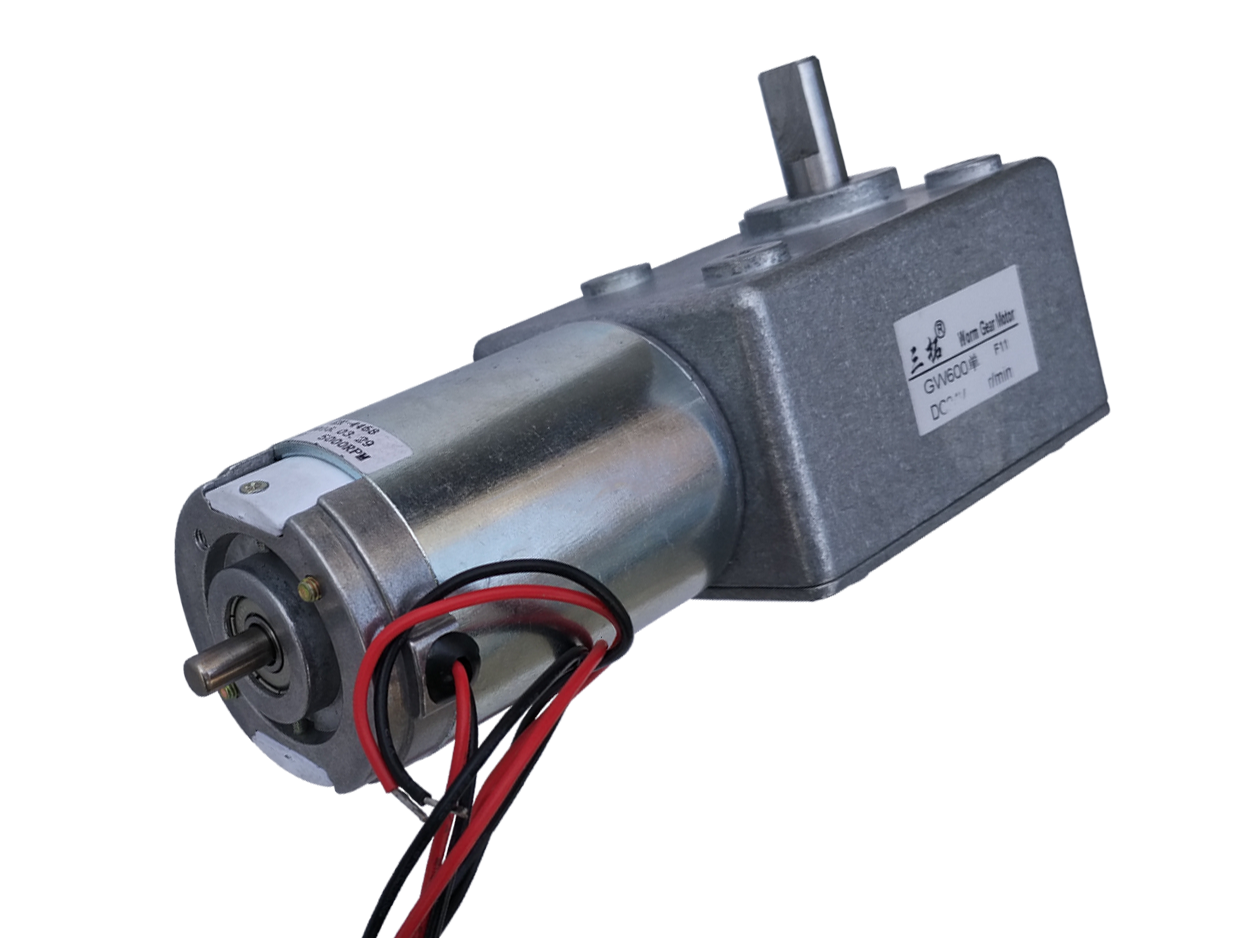

GW600(Tail shaft can be equipped with encoder)
Current Location:DC Worm Gear Reduction >> GW600(Tail shaft can be equipped with encoder)
- Model:GW600(Tail shaft can be equipped with encoder)
- 1, single/double output shaft, strong power
- 2, can be reversed, support speed
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4, suitable for applications such as robots, tank model drives
Detailed introduction
Technical Parameters
| Reduction ratio | Voltage | Current | No-load speed | Load speed | Torque | Weight |
| 1：527 | DC12V | 1.6A | 5RPM | 4RPM | 65kg.cm | 1kg |
| 1：175 | DC12V | 2.4A | 15RPM | 12RPM | 45kg.cm | 1kg |
| 1：527 | DC24V | 2.5A | 9RPM | 7RPM | 200kg.cm | 1kg |
| 1：175 | DC24V | 2.5A | 30RPM | 22RPM | 70kg.cm | 1kg |
| 1：92 | DC24V | 2.5A | 56RPM | 42RPM | 45kg.cm | 1kg |
| 1：50 | DC24V | 2.5A | 100RPM | 76RPM | 28kg.cm | 1kg |

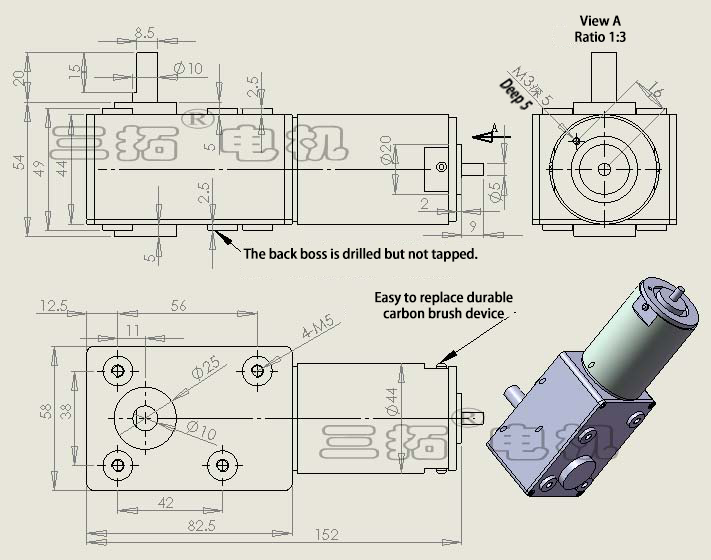

外形尺寸(单位：毫米)
Long tail shaft, single shaft
Long tail shaft, double shaft
Can be equipped with bracket
Long tail shaft, single shaft
