GW600
Current Location:DC Worm Gear Reduction >> GW600
- Model:GW600
- 1, single/double/extended/keyway shaft, strong power
- 2, can be reversed, support speed
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4, suitable for automatic monitoring, electric curtains
- and other applications
Detailed introduction

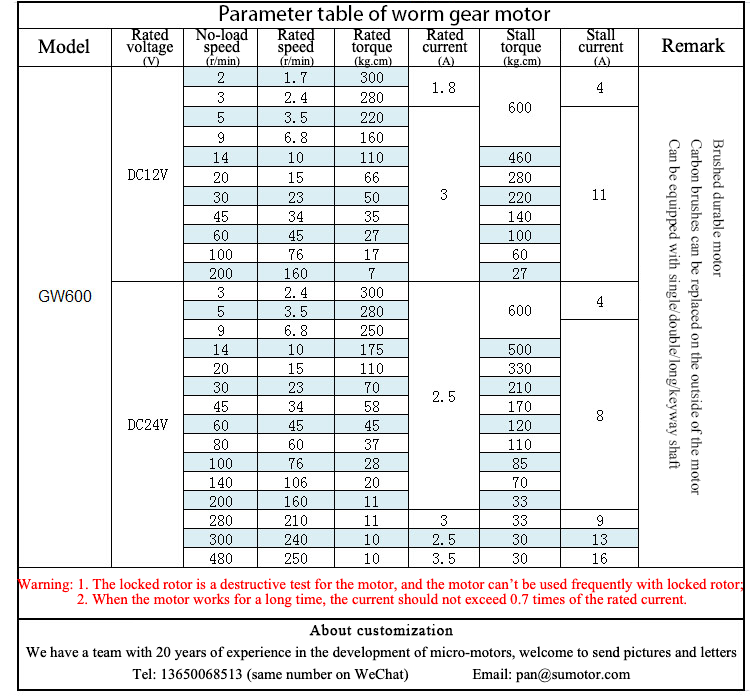

Technical Parameters

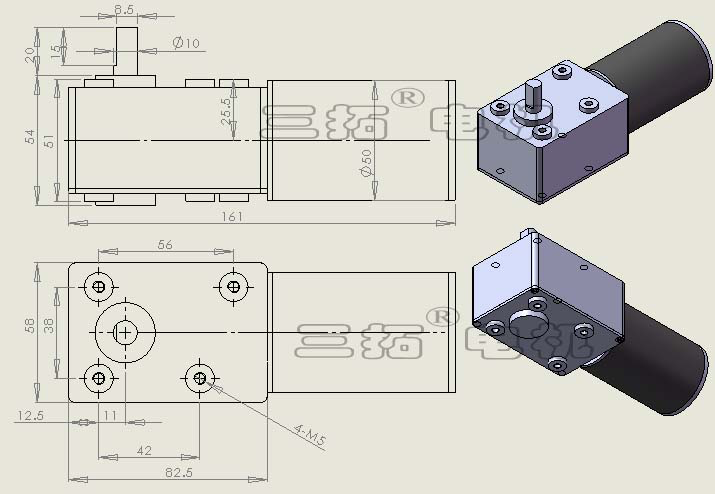

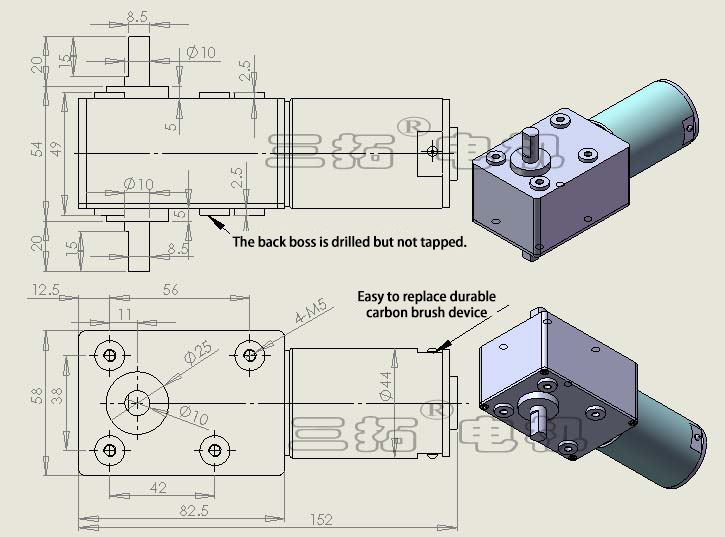

Dimensions(unit: mm)
100 rpm and below with gray motor (single shaft means that the gearbox has only one side out of the shaft)
140 rpm and above with black motor (dual shaft means that there are output shafts on both sides of the gearbox)
Can be equipped with bracket
