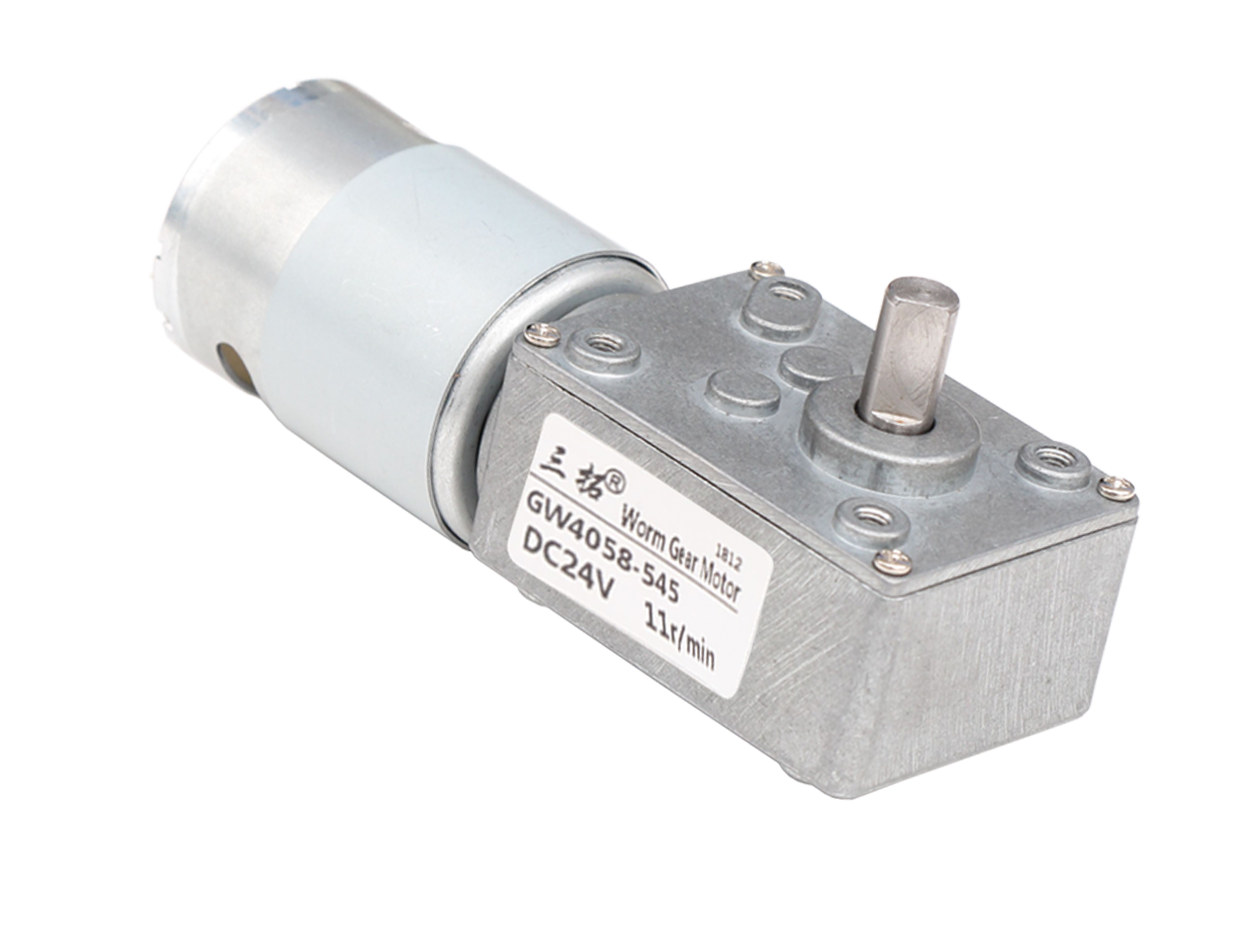

- Model:GW4058
- 1, single/double output shaft, strong power
- 2, can be reversed, support speed
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4, suitable for applications such as robots, tank model drives
Detailed introduction

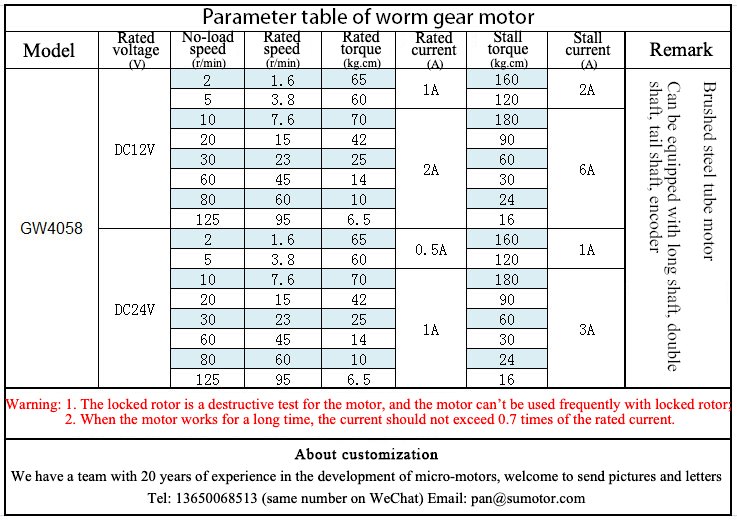

Technical Parameters
![](images/cp/jscs/GW4058-EN.png)
Dimensions(unit: mm)

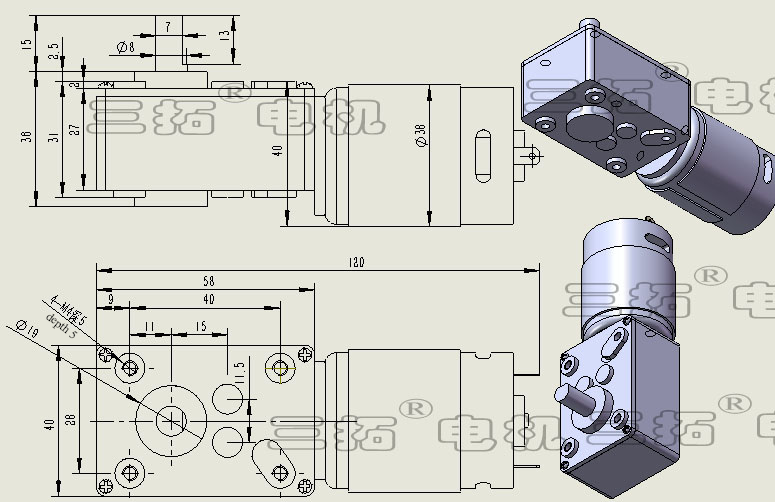

Standard shaft
![](images/cp/wxcc/GW4058.png)
![](images/cp/wxcc/GW4058.png)

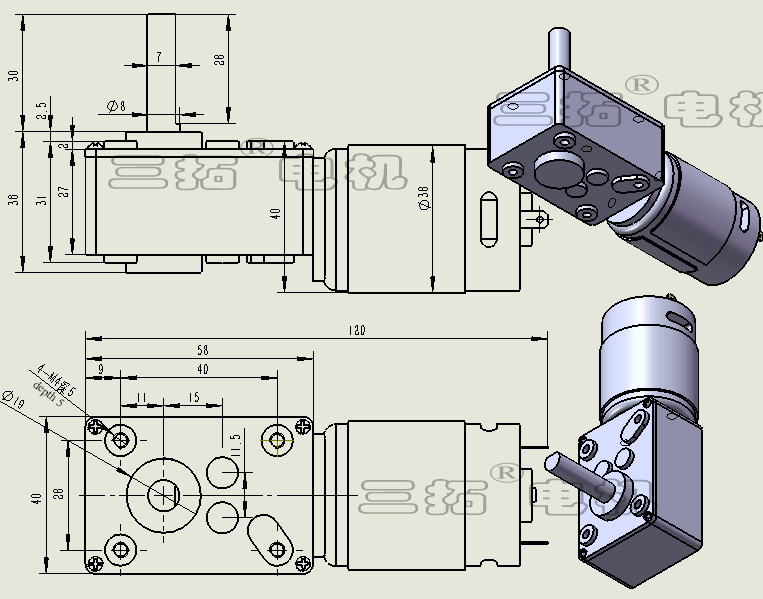

Extended shaft
![](images/cp/wxcc/GW4058-C.png)
![](images/cp/wxcc/GW4058-C.png)

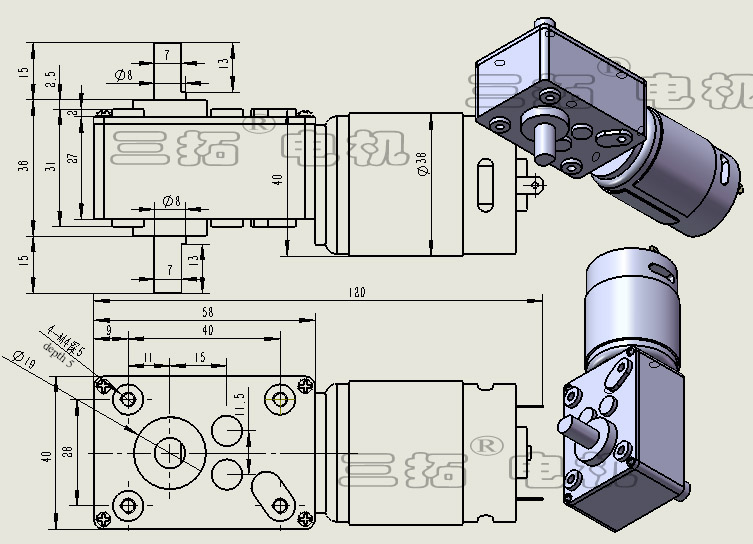

Double shaft
![](images/cp/wxcc/GW4058-S.png)
![](images/cp/wxcc/GW4058-S.png)
