GW38ZY
Current Location:Worm Gear Reduction >> GW38ZY
Type:Worm Gear Reduction
- Model:GW38ZY
- 1, plastic gear slowdown, lightweight
- 2, can be reversed, support speed
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4, suitable for toy tank crawler motors, robots and other
- applications
Detailed introduction
Technical Parameters
| Voltage | Current | No-load speed | Load speed | Torque | Weight |
| DC12V | 2.5A | 3RPM | 2.4RPM | 100kg.cm | 0.8kg |
| DC12V | 1.8A | 6RPM | 4.5RPM | 32kg.cm | 0.7kg |
| DC12V | 2.4A | 13RPM | 10RPM | 40kg.cm | 0.7kg |
| DC12V | 1.9A | 39RPM | 29RPM | 28kg.cm | 0.7kg |
| DC12V | 1.9A | 59RPM | 45RPM | 9kg.cm | 0.7kg |
| DC24V | 2.5A | 7RPM | 5.5RPM | 120kg.cm | 0.8kg |
| DC24V | 1.8A | 14RPM | 10.5RPM | 60kg.cm | 0.7kg |
| DC24V | 1.8A | 40RPM | 30RPM | 30kg.cm | 0.7kg |
| DC24V | 1.8A | 120RPM | 91RPM | 12kg.cm | 0.7kg |

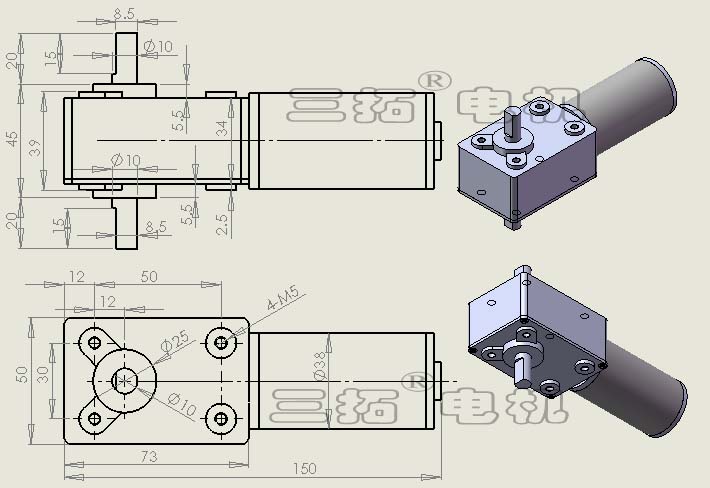

Dimensions(unit: mm)
12V3 RPM and 24V7 RPM with black motor (the rest are with gray motor)

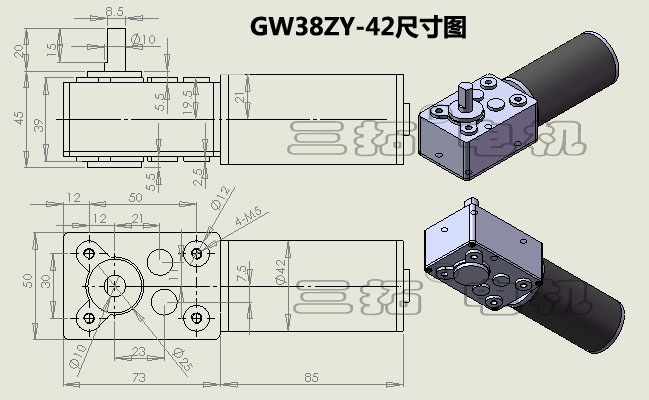

With gray motor (single shaft means that the gearbox has only one side out of the shaft)

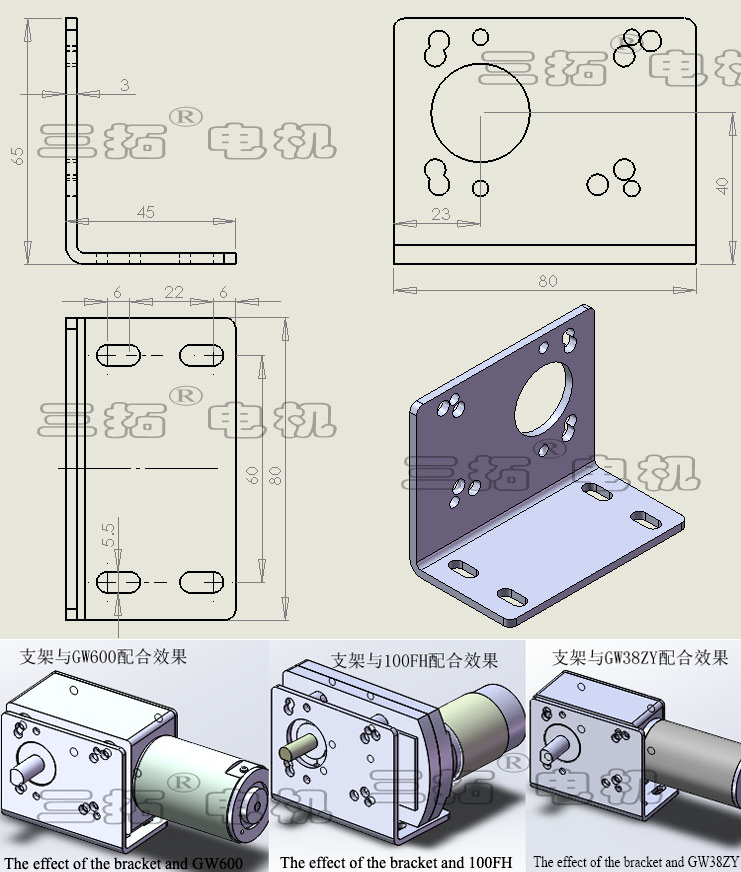

Can be equipped with bracket
