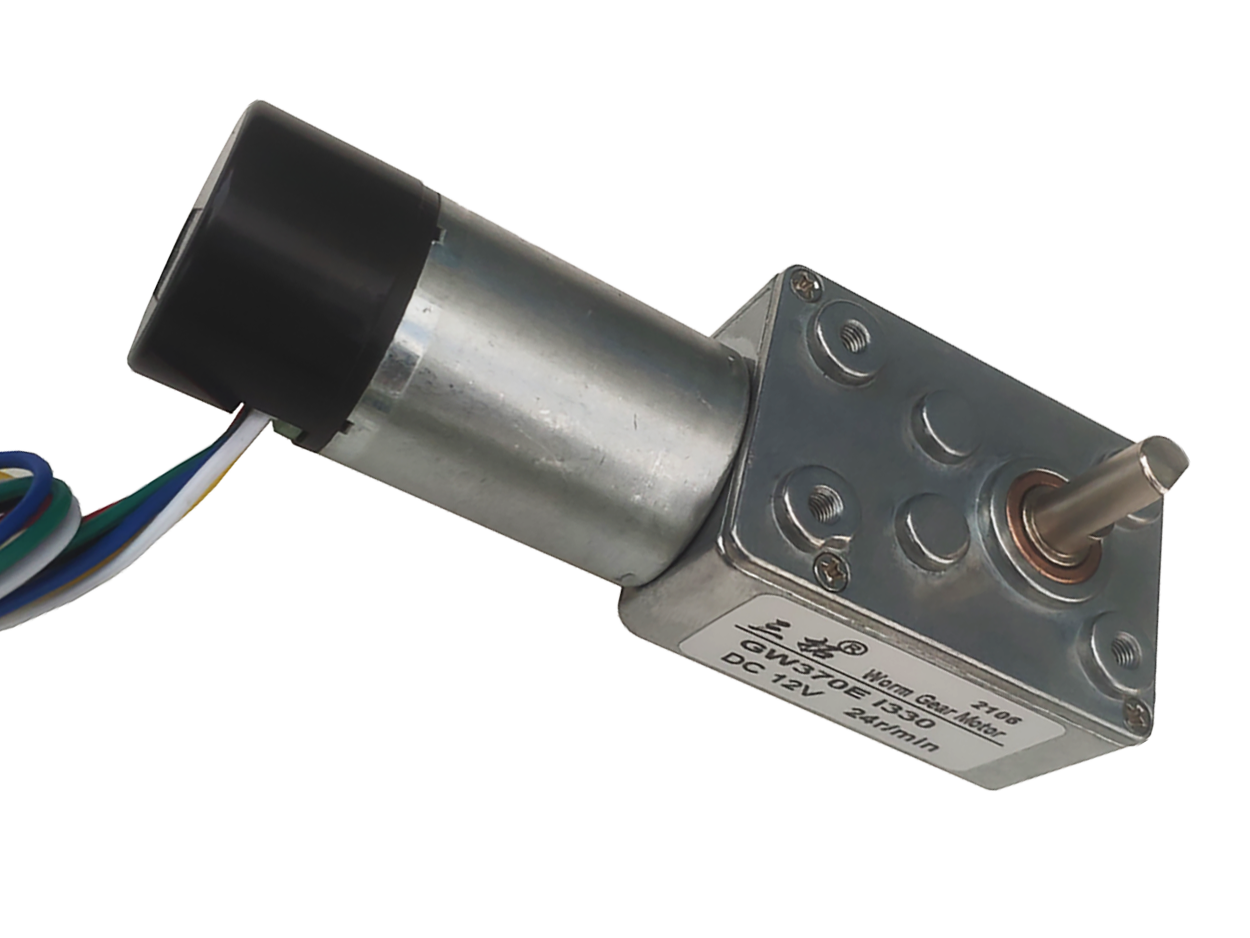

GW370(Mounted encoder)
Current Location:DC Worm Gear Reduction >> GW370(Mounted encoder)
- Model:GW370(Mounted encoder)
- 1, single/double output shaft, strong power
- 2, can be reversed, support speed
- 3, the output shaft of the motor has a certain self-locking
- property when there is no electricity
- 4, suitable for applications such as robots, tank model drives
Detailed introduction

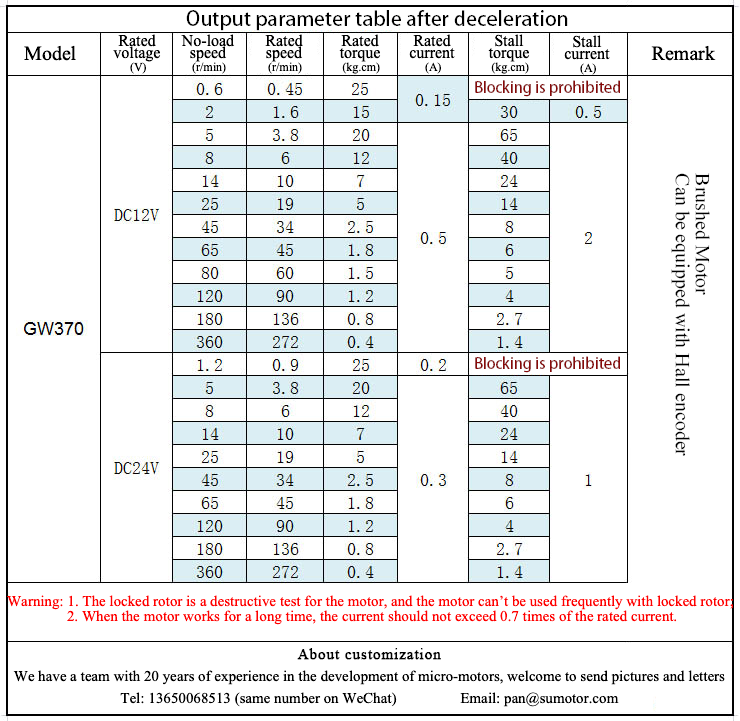

Technical Parameters
The high-speed shaft of the motor has been equipped with a Hall encoder, which can output pulses. The high-speed shaft of the motor rotates 1 circle and outputs 12 pulses. The 1 pulse signal represents the rotation angle of the output shaft of the gearbox = 360°÷12÷Reduction ratio , you can use this signal plus the control mechanism to detect the actual speed of the motor and the angle of rotation of the output shaft. Different models have different reduction ratios, please consult customer service when purchasing.
The high-speed shaft of the motor has been equipped with a Hall encoder, which can output pulses. The high-speed shaft of the motor rotates 1 circle and outputs 12 pulses. The 1 pulse signal represents the rotation angle of the output shaft of the gearbox = 360°÷12÷Reduction ratio , you can use this signal plus the control mechanism to detect the actual speed of the motor and the angle of rotation of the output shaft. Different models have different reduction ratios, please consult customer service when purchasing.

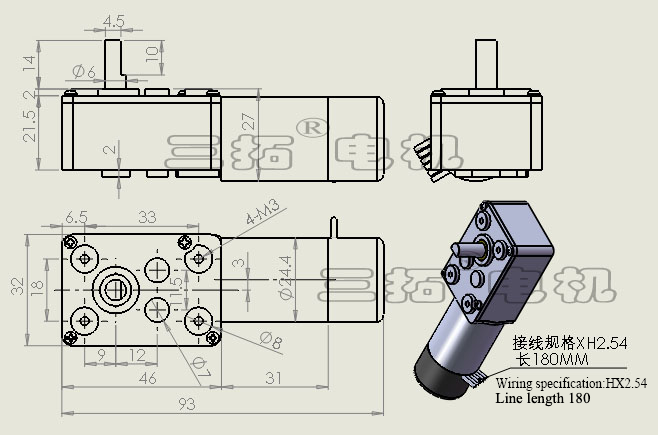

Dimensions(unit: mm)
