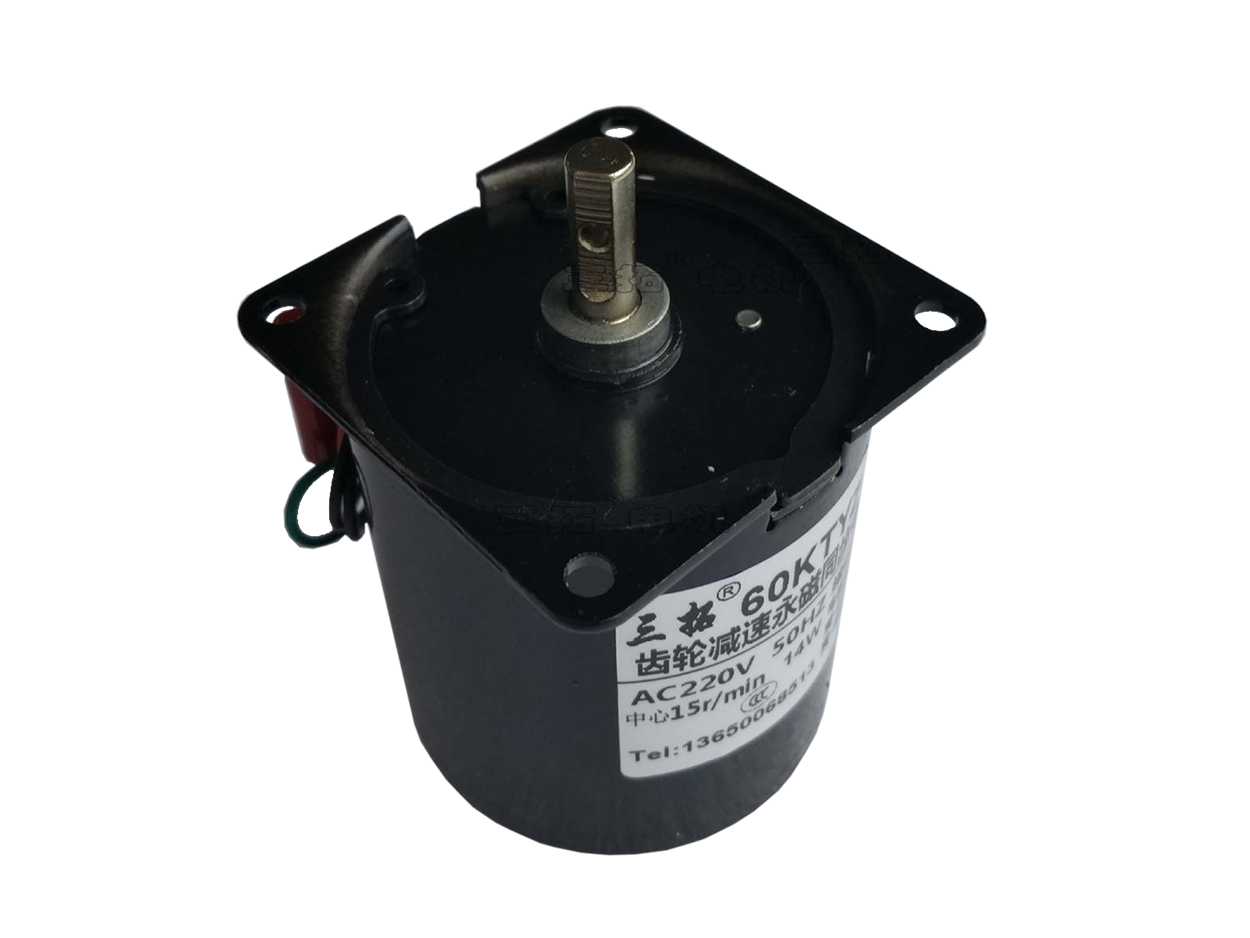

68KTYZ
Current Location:AC Permanent Magnet Synchronous >> 68KTYZ
- Model:68KTYZ
- 1, low power consumption, light weight, easy to use
- 2, the central axis, the direction of the reverse direction can be
- controlled
- 3, suitable for electric curtains, small dining tables, laminating
- machines, range hoods, etc
Detailed introduction
Technical Parameters
| Voltage | Input power | Load speed | Torque | Weight |
| AC220V | 18W | 2.5RPM | 100kg.cm | 0.6kg |
| AC220V | 18W | 5RPM | 70kg.cm | 0.6kg |
| AC220V | 18W | 10RPM | 38kg.cm | 0.6kg |
| AC220V | 18W | 15RPM | 22kg.cm | 0.6kg |
| AC220V | 18W | 20RPM | 17kg.cm | 0.6kg |
| AC220V | 18W | 30RPM | 11kg.cm | 0.6kg |
| AC220V | 18W | 50RPM | 7kg.cm | 0.6kg |
| AC220V | 18W | 60RPM | 6kg.cm | 0.6kg |
| AC220V | 18W | 80RPM | 4kg.cm | 0.6kg |
| AC220V | 18W | 110RPM | 3kg.cm | 0.6kg |

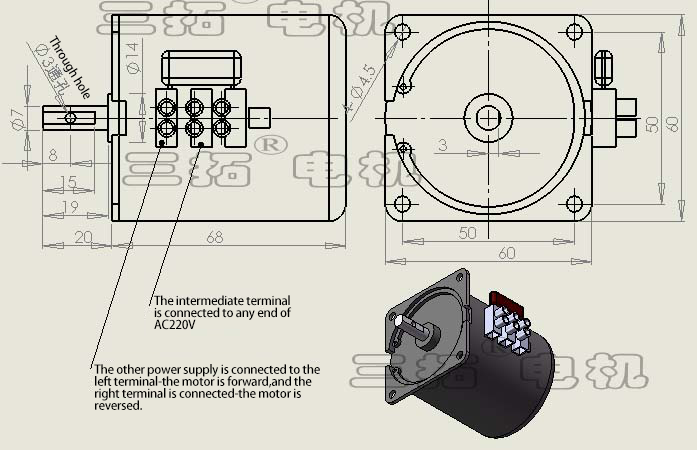

Dimensions(unit: mm)
