38SRZ
Current Location:DC High Speed >> 38SRZ
Type:DC High Speed

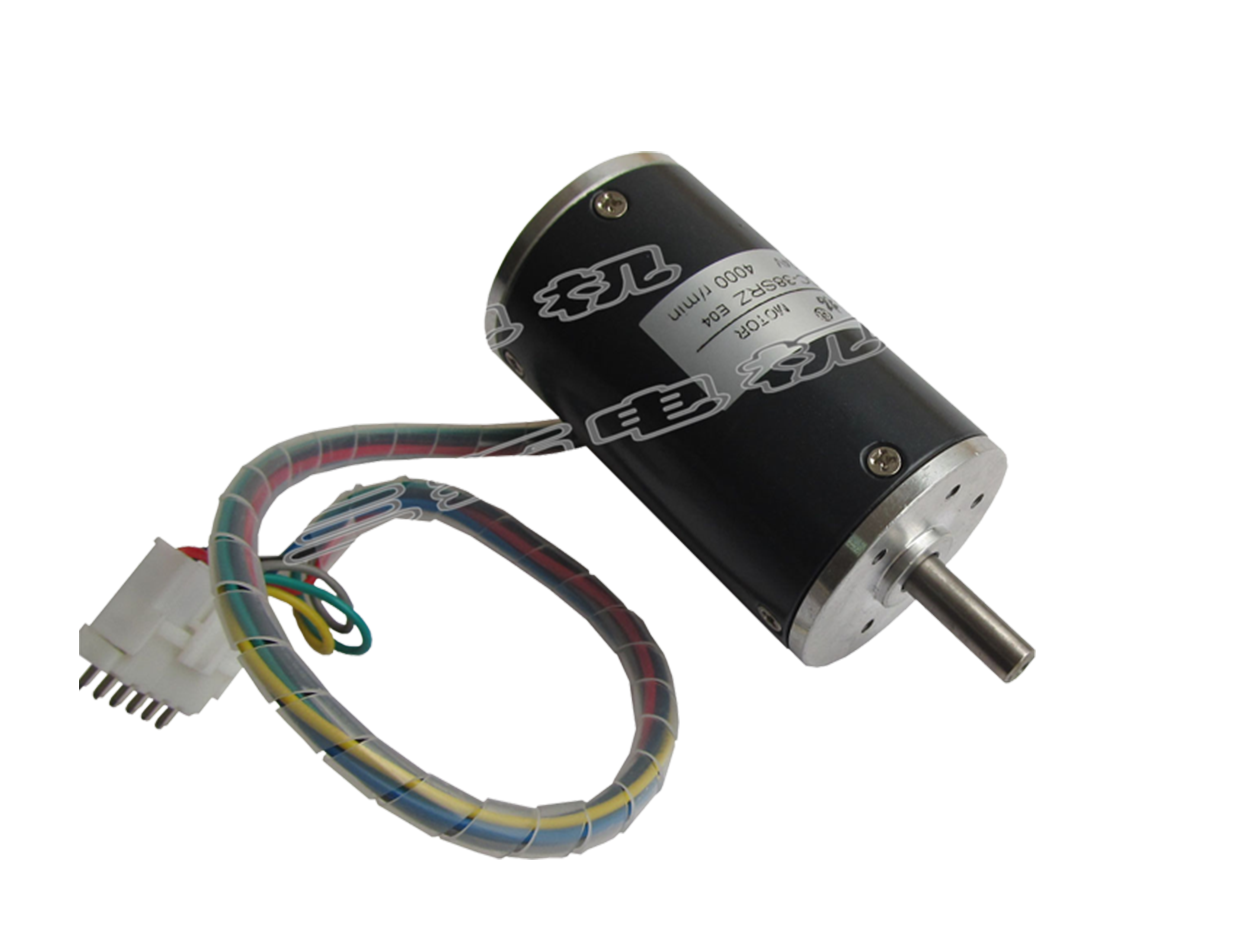

- Model:38SRZ
- 1, the two ends are bearing structure, precision
- manufacturing, running ultra-quiet
- 2, brushless design, long life of 10,000 hours or more
- 3. Connect the 10K potentiometer directly to realize the
- rectangular wave PWM speed regulation. Save energy and
- save money, save the cost of the governor, value
Detailed introduction
Technical Parameters
| Voltage | No-load speed | Load speed | No-load current | Load current | Torque |
| DC12V | 2000RPM | 1600RPM | 0.12A | 0.24A | 100g.cm |
| DC12V | 3000RPM | 2400RPM | 0.23A | 0.5A | 120g.cm |
| DC24V | 2000RPM | 1600RPM | 0.12A | 0.17A | 120g.cm |
| DC24V | 4000RPM | 3500RPM | 0.23A | 0.45A | 150g.cm |

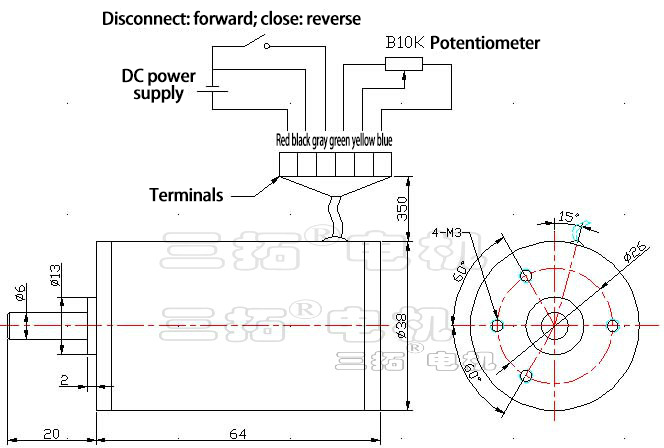

Dimensions(unit: mm)
