DC100-350W
Current Location:DC Gear Reduction >> DC100-350W
Type:DC Gear Reduction
- Model:DC100-350W
- 1，This series of motors has 100/150/240/250/350W
- 2, support positive and negative, adjustable speed, durable
- 3, multi-speed optional, large torque, stable and reliable
- quality
- 4, widely used in Electric trolley, electric car, etc
Detailed introduction
Technical Parameters
| Rated power | Rated voltage | No-load speed | Rated speed | Rated torque | Rated current | Weight |
| 100W | DC12V | 190RPM | 140RPM | 30kg.cm | 13A | 2.5kg |
| 150W | DC12V | 150RPM | 120RPM | 50kg.cm | 18A | 3kg |
| 240W | DC24V | 220RPM | 160RPM | 60kg.cm | 13A | 3kg |
| 250W | DC12V | 400RPM | 310RPM | 60kg.cm | 23A | 3kg |
| 250W | DC24V | 400RPM | 310RPM | 60kg.cm | 13A | 2.5kg |
| 350W | DC24V | 320RPM | 240RPM | 99kg.cm | 18.7A | 3kg |
| 350W | DC36V | 320RPM | 240RPM | 99kg.cm | 13A | 3kg |
Dimensions(unit: mm)
12V 150W，12V 250W，24V 240W，24V 350W，36V 350 size (weight:3kg)
>>> View: 12V 120W 24V 250W Wheelchair Motor
12V 150W，12V 250W，24V 240W，24V 350W，36V 350 size (weight:3kg)

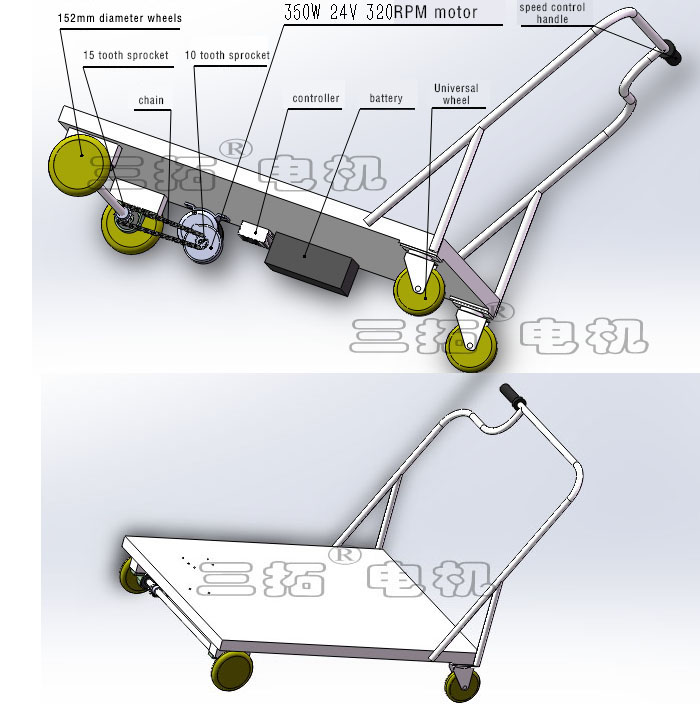

This motor is often used in electric bicycles, electric carts, and electric carts, as shown in the figure below. With the structural dimensions in the figure, it can push 200KG heavy objects at the fastest speed of 100 meters per minute on flat cement roads.
