100FH(Brushless)
Current Location:DC Deceleration Brushless >> 100FH(Brushless)
- Model:100FH(Brushless)
- 1. Brushless motor has a long life and is equipped with a solid
- reduction gearbox. It is durable and durable
- 2, with the switch such as the driver can achieve overload
- protection, speed regulation, forward and reverse, stop switch
- in place to stop
Detailed introduction
Technical Parameters
| Voltage | No-load speed | Load speed | Torque | Current |
| DC12V | 5RPM | 4RPM | 50kg.cm | 1.2A |
| DC12V | 15RPM | 12RPM | 30kg.cm | 1.2A |
| DC12V | 30RPM | 24RPM | 18kg.cm | 1.2A |
| DC12V | 60RPM | 48RPM | 10kg.cm | 1.2A |
| DC12V | 90RPM | 72RPM | 6kg.cm | 1.2A |
| DC24V | 5.2RPM | 4RPM | 50kg.cm | 0.9A |
| DC24V | 60RPM | 48RPM | 12kg.cm | 0.9A |

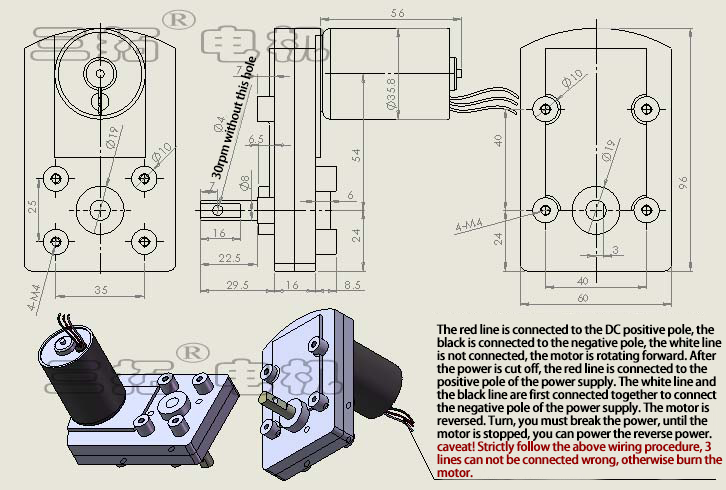

Dimensions(unit: mm)
